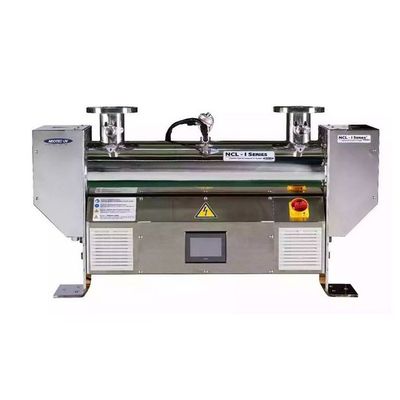

Neotec - Model NCL-I Series -Closed Chamber Type Low Pressure Industrial UV System with Integrated Controller
FromNeotec Inc.
Integrated controller and reactor to minimize footprint and easy installation. Adopted high efficiency LPHO Lamp. User friendly touch screen interface. Suited for industrial water process application. Installation flexibility with ability to separate main body & control cabinet. Optimized design based on CFD-RED (Computational Fluid Dynamics-Reduction Equivalent Dose) analysis.
Most popular related searches
computational fluid dynamics
industrial UV system
low pressure ultraviolet system
pure water
drinking water
temperature sensor
UV system
fluid dynamics
industrial water
control cabinet
NOL-I SERIES
1,2: Inlet, Outlet (Interchangeable)
3: Sampling Port
4: UV Intensity Sensor
5: Temperature Sensor
6: Power Switch
7: System Control Panel
8: Drain Port
- Material: Electropolished Stst 316L
- Lamp Type / Input Power: LPHO Lamp / 40 ~ 90W
- Cleaning System: Standard : No Cleaning System
- Option : Motor Driven Automatic Cleaning System
- Operating Temperature: Water : 5?~40? / Ambient : 1?~40?
- Max operating Pressure: 8 Bar (Optional 10 Bar)
- Controller: PLC or Microprocessor
- Voltage / Frequency: 120V or 240V / 50/60Hz
- Sensor: Temperature Sensor, UV Intensity Sensor
- Application: Potable Water, Pure Water, Ultrapure Water Process
