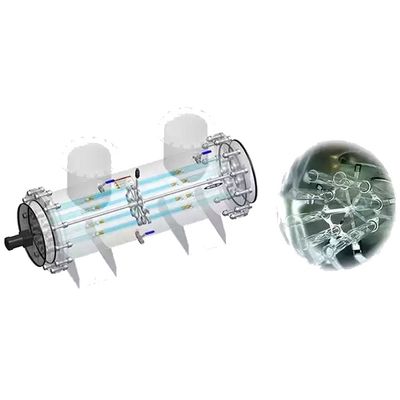

Neotec - Model NCM-U/S Series -Closed Chamber Type Medium Pressure U/S-Shaped UV System

FromNeotec Inc.

SHARE

Few medium pressure (MP) UV lamps can serve large water treatment facility. MP lamp is stronger and produces wider range of UV spectrum than low pressure UV lamp. mplemented automatic sleeve wiper mechanism, UV monitoring, energy save control mode, (remote control mode, various other system monitoring, etc. for easy maintenance. Various applications including disinfection & TOC removal for ultra pure water, drinking water disinfection, de-chlorination, de-ozonization, brewery, beverage, mineral water, swimming pool, etc. NSF 50 (Pool, Spa and Recreational Water Standards) certified after endurance and biological tests.

Most popular related searches

medium pressure ultraviolet lamp

medium pressure ultraviolet

low pressure ultraviolet lamp

ultrapure water

ultraviolet lamp

water disinfection

low pressure ultraviolet

water treatment plant

drinking water disinfection

Module Specification:

Material: STS 316L, (Option : Electro polishing)
Lamp Type / Input Power Per Lamp: Medium Pressure UV lamp / 1.5kW - 6kW
Cleaning System (if applicable): Motor driven automatic wiper mechanism
Operating Water Temperature: 5?~65?
Connections: P16, DN, ANSI150, JIS, KS
Working / Max. operation pressure: 10bar / 15bar

Enclosure Specification:

Material: RAL 7032, Mild steel (Option : STS304)
Protection Rating: IP54 / NEMA 4X
System Control Panel (SCP):
Controller: PLC
Voltage / Frequency: 220V~480V / 50/60Hz
Operating Temperature: 0?~50?

Power Supply Panel (PSP):

Ballast Type: Variable output electronic ballast / magnetic ballast

Certification:

NSF 50, Patent, CE Certification, BWT UV System IMO Certification

NCM SERIES:

Model: NCM-US
Lamp Type / Input Power Per Lamp: Medium Pressure UV lamp /1.5 - 6kW
Application: Pool, Spa and Recreational Water Disinfection, waster water disinfection
