Evapco Inc.

- Model cATWB - Closed Circuit Cooler

From

0

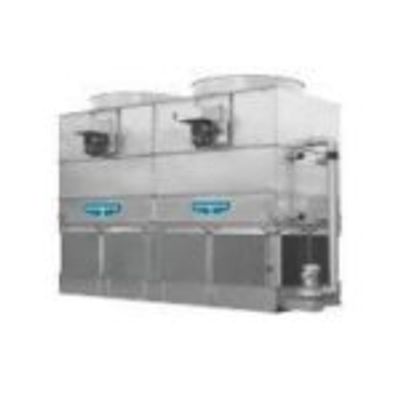

The containerized Advanced Technology closed circuit cooler provides an induced-draft, axial fan solution for a wide array of outdoor cooling capacities, and is optimally designed to fit inside a shipping container to reduce ocean freight costs. Bringing EVAPCO's Advanced Technology design to closed circuit coolers, the cATWB features the Thermal-Pak II Coil with CrossCool Internal Tube Enhancement, offering incredible evaporative cooling capacity.

  • Containerized: designed to fit completely inside 20 and 40 foot shipping containers, reducing costs
  • Available with export crating and nitrogen charged coils
  • Available in a huge range of models and box sizes unparalleled in the industry
  • Ranging in capacity from 1,326 to 5,101 MBH
  • IBC Compliant – Independently certified by the International Building Code to withstand seismic and wind load forces in North America
  • Independently certified by the Cooling Technology Institute


The process fluid enters the Thermal-Pak II coil through the top coil connection and circulates through the coils. The water distribution system system cascades water over the tubes of the coil, transferring heat to the water. Air is drawn upward and over the coils by the axial fan, agitating the falling water and increasing the transfer of heat. A small amount of the recirculating water evaporates due to latent heat transfer through the tube and fin walls of the Thermal-Pak II coil, removing heat from the system. The cooled fluid then returns to the process via the bottom coil connection.

Thermal-Pak II Coil

EVAPCO's Thermal-Pak II coils patented design assures maximum cooling capacity. The airflow through the coil is counterflow to the fluid flow, providing the most efficient heat transfer process. A special coil design is utilized to reduce the air pressure drop through the unit while maximizing tube surface area and increasing its heat transfer capabilities.

  • Elliptical return bends allows for more circuits per coil bundle increasing the maximum capacity per footprint
  • Coil located in airstream increasing dry bulb switchover temperature
  • CrossCool Internal Tube Enhancement increase fluid turbulence providing additional evaporative capacity
  • Available in type 304 SS or type 316 SS construction

Drift Eliminators

  • Limits the drift rate to less than 0.001% of the recirculating water rate
  • Limit the potential of spreading Legionella
  • Constructed of an inert polyvinyl chloride (PVC)

Superior Air Inlet Louver and Screen Design

  • Constructed of an inert polyvinyl chloride (PVC)
  • Two pass design that minimizes splash-out and the potential for algae formation inside the tower
  • Framed in steel in easily removable sections

Pressurized Water Distribution System

EVAPCO's Zero Maintenance ZMII spray nozzle remains clog free while providing even and constant water distribution, providing the industry's best performing non-corrosive, maintenance-free water distribution system.

  • ZMII spray nozzles have a 1-1/4' diameter opening and a 1-1/4' splash plate clearance
  • Mounted in corrosion-free PVC water distribution pipes that have threaded end caps
  • Provides unequaled coil coverage and scale prevention

Stainless Steel Water Touch Basin

  • Available in Type 304 or Type 316 Stainless Steel
  • Includes the entire basin area including the support columns and the louver frames
  • Welded basin seams for leak-free operation

Stainless Steel Casing & Fan Section

  • Available in Type 304 or Type 316 Stainless Steel
  • Includes the entire upper section including fan guard

Water Treatment Systems

Available with water treatment systems, providing environmentally sensitive alternatives for treating water in evaporative cooled equipment.

  • Smart-Shield solid chemical water treatment system
  • Pulse-Pure CHEMICAL-FREE water treatment system

Maintenance Accessories

Available with multiple equipment options to aid in the maintenance of the closed circuit cooler.

  • Basin level platform
  • Sloped ladder
  • Hinged louver access door
  • Motor davit with base
