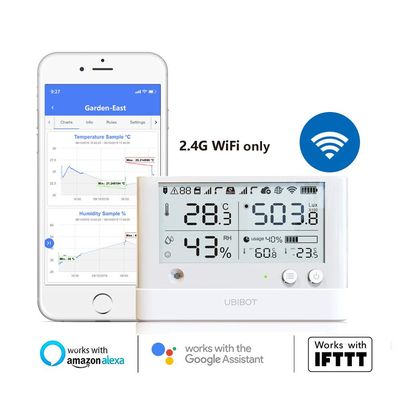

UbiBot - Model WS1 PRO WIFI VERSION -Cloud-based WiFi temperature, humidity, ambient light data logger and monitoring with 4.4” LCD screen

• Temperature, humidity and ambient light monitoring

• 2.4 GHz WiFi network connection, no need of hubs or gateways

• 4.4” high-quality LCD screen displaying the current environmental conditions

• Free App & Web Console to access and monitor real-time data remotely, no subscription fee

• Unlimited UbiBot cloud storage for historical data; free historical data export

• Multiple ways of real-time alerts: App notifications, emails, phone calls, SMS, HTTP

• 2 x DS18B20 external temperature probe and 1 x RS485 probe is supported

• Easy setup with free UbiBot App or PC tools

• 300,000 records memory stores all data even if WiFi is temporarily disconnected, to ensure there are no gaps in the data history.

• 2-way power supply: AA batteries and external power supply

• Compliance with CE, EN 12830, FCC, FDA CFR21, IC, RCM, RoHS, TELEC

Note:

• UbiBot WS1 Pro is not waterproof. The optimal operational environment is 10% to 90% RH. Long term of exposing to high humid environment over 90% may cause damage to the device.
• If used outdoor or in continuously high humidity over 90%, we suggest to using UbiBot water-resistant case and connect external probes.
• WS1 Pro can only work with 2.4GHz WiFi network. 5GHz WiFi is not supported.

UbiBot WS1 Pro has two Micro USB ports for connecting external probes or USB power-supply.

- Each of the Micro USB port supports 1 x DS18B20 temperature probe.

- The lower Micro USB port also supports RS485 probes:

• TH30S-B Temperature and Humidity Probe
• Soil Temperature and Moisture Sensor
• PT 100 Industrial-grade Temperature Probe
• Wind Speed Sensor

NOTE:

• Only 1 RS485 probe can be connected at a time.
• Splitters may be needed when you connect multiple external probes and external USB power-supply at the same time.

• Technical specififications
  Temperature ：-20℃ to 60℃( -4℉ to 140℉)
  Humidity ：10% to 90%, No condensation
  Ambient light ：0-83k lux
  Accuracy ：Temperature ±0.3 ℃, humidity ±3%, ambient light ±2%
  Memory ：300,000 sensor records

• Network connection
  WiFi ：2.4GHz or 2.4/5GHz, channels 1-13 (5GHz WiFi NOT supported)

• Physical specififications
  Materials ：Flame resistant ABS + PC
  Dimensions ：12.6*8.6*2.25cm
  Weight ：143g ± 3g
  Colour ：white
  Screen ：10.4 x 5cm (4.4’’)
  Ports ：2 x Micro USB; USB 2 is embedded with RS485 interface
  Power Source : 4 x AA batteries /Micro USB（5V/2A）

• External probes
  Supports 2*DS18B20 and 1*TH30S-B or Soil probe or PT-100 or wind speed sensor (a
  splitter may be needed)

• List of one single pack
  1 x WS1 Pro-WiFi device; 1 x manual book; 1 x USB cable; 1 x stand

• Medical fields

• Pharmaceutical

• Labs

• Hospital
• Cleanroom
• Server room

• Automation building

• HVAC

• Agricultural fields - greenhouse; hydroponics; indoor farming; vertical farming
