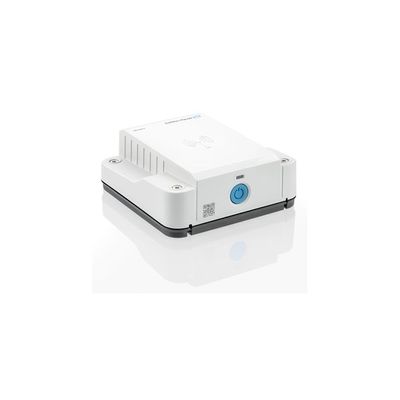

Micropilot - Model FWR30 -Cloud Connected Radar Level Sensor
From smart level monitoring to supply chain management. Continuous simplicity from scratch. Our IIoT radar is a smart level transmitter with high-end technology in a cost-effective sensor. Together with the digital services Netilion Value, Netilion Inventory or SupplyCare Hosting, the wireless and battery powered level sensor, ensures reliable and remote level monitoring. The secure and certified solution provides access to information on asset and inventory status from everywhere at any time.
- Full transparency in storage and transportation of liquids
- Simplified solution from procurement to operations
- Secure data transmission combined with a flexible, digital service portfolio
- Information access from everywhere at any time
- Level measurement and tracking of mobile plastic tanks like IBCs
- Level measurement and inventory management of plastic tanks which are not located on a plant (different stations)
- Level measurement and inventory management of mobile and stationary plastic tanks in production – difficult to power supply, fast and easy commissioning, transparency when running out of safety stock
Continuous / Liquids
Measuring principle
Level radar
Characteristic / Application
- Applications in all industries
- Mobile and stationary plastic tanks (IBC tanks, storage tanks)
Specialities
Commissioning and operation via digital services like "Netilion Value" or "SupplyCare Hosting"
Supply / Communication
Battery powered
Mobile connectivity with NB-IoT, LTE-M or 2G (fallback)
Frequency
80 GHz
Accuracy
±10 mm (0.39 in)
Process temperature
-20°C...+60°C (-4°F…+140°F)
Main wetted parts
Housing: plastic PBT/ PC
Process connection
None
Max. measurement distance
15 m (49 ft)
Communication
Wireless
Mobile connectivity with NB-IoT, LTE-M or 2G (fallback)
Options
Mounting bracket IBC/ pipe
Mounting bracket wall/ ceiling
Application limits
DK <1.9
Metallized plastic tanks
