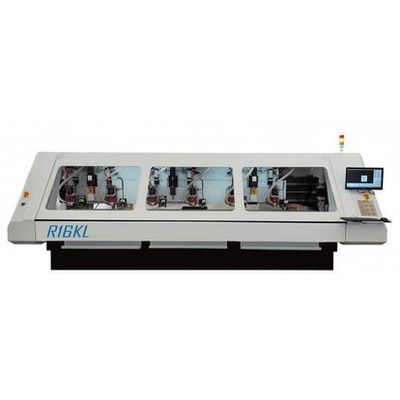

Kexin - Model R16KL -CNC 6 Spindles PCB Routing Machine

SHARE

6-spindles pcb routing machine are the hot sale machines and its spares are imported from the famous brands such as the HIWIN ball screws, Delta Servo Motor and Driver, NSK bearings, SMC cylinders, Panasonnic Amplifier etc.

Most popular related searches
spindle
PCB
compressed air
cooling water
water cooling
  • No. of Z axis:3 :
  • No. of Spindle:6 :
  • Processing area of each axis:650mm×830mm :
  • XYZ axial movement stroke:670mm×925mm×55mm :
  • Number of tools per axis:66 pcs :
  • Routing diameter:φ0.6-φ3.175mm :

  • Natural-granite base
  • CBD Electrical Connected Broken-tool Detection
  • Real-time response, no missing-routing
  • Tool change :Hitachi Or Euro method
  • Optional: Automatic collet cleaning function
  • Optional: Automatic pinning &De-ping function

  • Model: PCB CNC Router_R16KL
  • No. of Z axis: 3
  • No. of Spindle: 6
  • Spindle Speed: 60k rpm / min (80k rpm)
  • Processing area of each axis: 630mm×8300mm
  • XYZ axial movement stroke: 650mm×925mm×55mm
  • Number of tools per axis: 66 pcs
  • Drilling diameter: φ0.5-φ6.35mm
  • Milling diameter: φ0.6-φ3.175mm
  • XY Axial max. movement speed: 35m/min
  • Z Axial max. movement speed: 25m/min
  • System resolution ratio: 0.001mm
  • Positioning Accuracy: ±0.01mm
  • Repeatability Accuracy : ±0.005mm
  • Routing precision: ±0.05mm
  • Power requirements: 3P/380V/50Hz (±5%); 3KW
  • Compressed air requirement : 300L/min
  • Cooling water requirement: 18?-25?
  • Environmental temperature: 20?-25?
  • Ambient humidity: 50%-75%
  • Noise: ≤75dBA
  • Machine Size: 4700mm×2130mm×1600mm (L×W×H)
