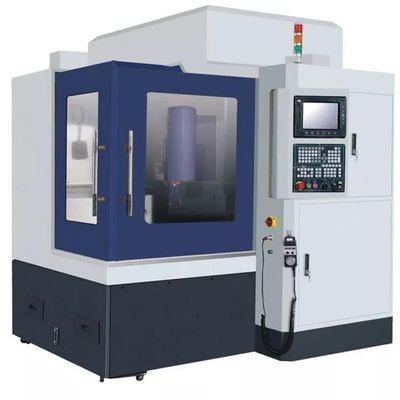

Hangong - Model HG870V -CNC Engraving Milling Machine
CNC Engraving Milling Machine – HG870V is a type of CNC controlled machine that can carve, cut, and engrave various materials using a rotating cutting tool. It has a very wide range of applications and can be applied to various fields and industries, and is suitable for engraving and cutting of various materials (except for materials with low melting points).
CNC Engraving Milling Machine – HG870V is the multifunctional CNC machine integrating engraving, milling and drilling. With fast rotation speed, low working noise and high control accuracy, it is widely used in various mold making, such as the plastic mold, stamping mold, die-casting mold, shoe mold and other metal or non-metal parts.
High Speed CNC Engraving Machine which is also called CNC Milling Engraving machine or CNC Engraver, looks like a small one milling machine. It has a very wide range of applications and can be applied to various fields and industries, and is suitable for engraving and cutting of various materials (except for materials with low melting points).
- Fully Enclosed Cover
- Controller Integrated
- Servo Motors
- Tool Magazine
- With Syntec control system, other control systems are optional.
- Automatic Lubrication System
- Oil Cooling System
- Model: From HG650V ~ HG1311V
- Different Tool Magazine Optional
- Rotation worktable / 4th Axis Optional
- Different Speed of Spindle Optional
- Different Control System Optional
- Max. Engraving Size: mm: 800×700×350
- Max. Loading Weight: kg: 400
- Table Size: mm: 800×690/800×700
- Travel for X/Y/Z: : 800×700×350
- Tool Magazine: T: Optional
- Control System: : Syntec or Mitsubishi
- Machine Size: mm: 2300×2000×2500
- Machine Weight: t: 4.5
