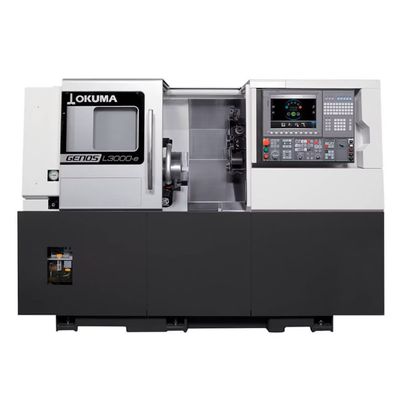

Okuma GENOS - Model L3000-e -CNC Lathe
The latest in the GENOS L series of lathes, our GENOS L3000-e features an integral spindle for powerful, high-precision CNC machining. This one-saddle lathe is stronger, smaller, and ideal for cutting a wide range of exotic materials with ease. The integral spindle motor provides increased machining capacity as highly rigid guideways handle powerful cutting capabilities. This highly evolved horizontal lathe delivers turning, optional milling capabilities, optional Y-axis, and optional sub-spindle (W) in a compact footprint.
- Turret - 12-station, slotted turret is standard bolt-on type turret for optional M and MY
- Optional Sub Spindle - for even greater manufacturing flexibility
- Spindle - Integral main spindle
- OSP suite - A library of apps for stress-free setup and operation
- TAS Standard -Thermo Active Stabilizer for improved accuracy & repeatability
- Coolant Tank - Separate coolant tank for quick servicing
The GENOS L3000-e (M), with optional milling function has high speed milling and Y-axis options on specific models, allowing users to select the best specifications for a particular workpiece length and shape. Shop floor productivity is increased with a mounted NC tailstock (option) that allows for easy setup of various workpieces. Thermo-Friendly construction—including TAS-C (Thermo Active Stabilizer)—is standard and automatically compensates thermal effects to maintain tight tolerances.
The GENOS L3000-e is an operator-friendly designed machine that simplifies cleaning, filtration, and maintenance tasks. User-friendly features include:
- A separate cooling tank for quick servicing
- Easy spindle access to reduce operator work burden and maintenance tasks
- Reduced chip accumulation during long, continuous runs decreases machine downtime for cleaning
Max Turning Diameter (in): Ø 13.39
Max Turning Length (in): 19.69
Spindle Nose Type: JIS A2-8
Speed Range (min?¹): 38~3,800
Power 20 min (hp): 30
Power cont. (hp): 20
Rapid Traverse X, Z (fpm): 82.03, 98.43
