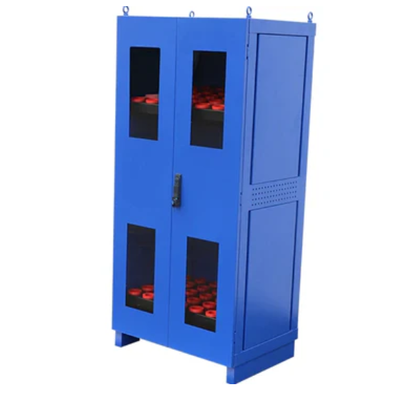

Uratech - Model HSK50B-HSK50D-HSK50F -CNC Locker and Cabinet

SHARE

Designed for HSK 50B/50D/50F holders, this 390 lb welded CNC cabinet includes tapered red nylon inserts (Ø1.200”), 12° inclined trays, lockable acrylic doors, forklift & crane access, and pegboard sides. Powder-coated and ready to use. Ship worldwide.

Most popular related searches
crane fork

  • Nylon Inserts Inner diameter will be 1.200” and tapered,

  • Premium Construction:
    • Cold-Rolled Steel: Made steel for enhanced durability. Sky Blue color
    • Front door frames, 2.0 mm thick, Cold rolled steel
    • Trays and other materials, 16 Gauge steel, 1.5mm Thick
    • Top 2 trays are inclined at 12 Deg for convenience.

    • Welded Construction & ready to use.

    • Pegboard holes are incorporated on the side doors to organize consumables.
    • 4 Eye bolts are installed on the top of the cabinet to lift using crane.
    • Fork Lift Access provided.

Compact and Sturdy Design :

  •  Cabinet size: 22.000” X 32.000” X 65.000” (height from the floor when assembled). This compact design fits seamlessly into any workspace.
    • Tool cart weight:………………….. .:390 lbs
  • Front doors can be locked and secured ( 2 sets of keys)
  • Clear Acrylic sheets installed on front doors for viewing.
  • Crated in a wooden box with shipping bolts.
  • We now ship worldwide.
  • Product Weight in Lbs : 425 Lbs
  • Product Dimension: 31.0" x 41.0" x 81.0" , Crated in a wooden Box, will be shipped as a LTL shipment
  • Package Weight in Lbs:
  • Package Dimension:
