DATRON neo - CNC Milling Machines
FromDatron Ag

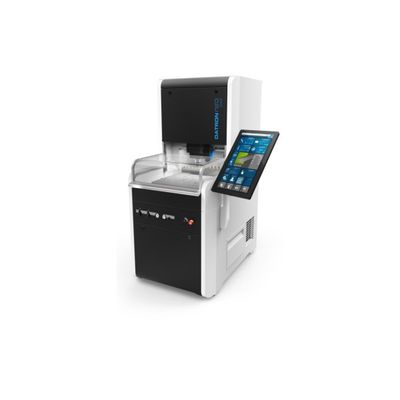

DATRON neo was specifically designed and purpose-built to give you an easy access to high-speed milling. This Plug-and-Play system features DATRON next which gives you full control of 3-axis milling without requiring years of experience as a machinist. Ergonomic, frontal access to the work area allows for quick and safe setup of workpieces. With a Smartphone-like (touch screen) interface the command of fast and precise machining is literally at your fingertips. All of this and DATRON neo actually fits through a standard door!
Most popular related searches
Table with breakout
- Machining space on the table (dark blue)
- Machining space inside the vertical clamping space (orange)
- Max. Workpiece size within the vertical clamping space (light blue)
Machine Features
- Machine construction : Gantry design, machine frame made of polymer concrete casting, aluminium table
- Drive system : Brushless, digital servo drives; direct drive ball screws for each axis
- Floor space without operating terminal (W x D x H) : 805 mm x 1.290 mm x 1.880 mm (32 “ x 51 “ x 74 “)
- Weight : approx. 700 kg (1,543 lbs.)
Machining Features
- Traverse path (X x Y x Z) : 520 mm x 420 mm x 220 mm (20 “ x 16.5 “ x 9 “)
- Machining area (X x Y) (W x D x H) : 500 mm x 400 mm (19.5"x 16")
- Gantry height : 175 mm (7")
- Machining speed : up to 28 m/min (1,102“/min)
Equipment/Scope of delivery
- High-frequency machining spindle : 2,0 kW up to 40.000 rpm
- Tool magazine with tool-lenght sensor : 24- fold with direkt shank tool holder
- Minimum quantity cooling system : Yes
- Operator terminal : 24" Multi-Touch Display
- Comfortable hand held control unit : Yes
- Control system/Software : DATRON next
- 3D probe : Yes
Supply
- Tension : 3 x 400 VAC/16A
- Power input : 3,5 kW
- Air supply : 7 – 10 bar, 100 psi, dry, clean, oil free
- Ambient temperature : 18 – 30 °C (65°F - 86°F)
- EVERYTHING AT A GLACE
- Tile design with self-explanatory icons
- Realistic 3D graphics
- Current machine status is visible on run screen even from a distance
- EASY HANDLING
- Intuitive touch operation, similar to a smartphone
- Camera-assisted setup via swipe gestures
- Intuitive App-style functions
- PRODUCE YOUR IDEAS QUICKLY
- Fast, simple process
- Just 4 steps to the finished workpiece
- Compatible with leading CAM suppliers
- Additional data from CAM usable
