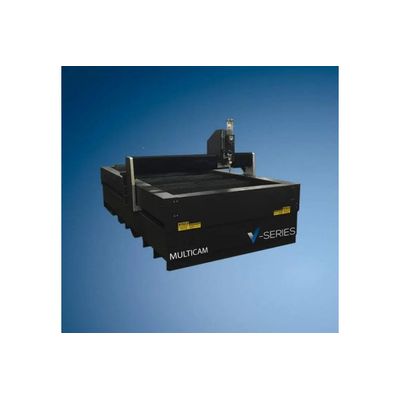

MultiCam - Model V-Series -CNC Waterjet Cutting System
The V-Series CNC Waterjet may be just the solution you’ve been looking for. With the V-Series, you can make pure water or abrasive cuts.
To maximize your productivity, the V-Series CNC Waterjet comes with multiple heads so you can simultaneously machine parts. And, you can accurately cut just about anything you want. Cutting applications range from steel to galvanized metal, stone, glass, and plastic. You can cut for nearly any common application, including manufacturing HVAC equipment, making signs, or making automotive parts.
A KMT Tri-Line Pump is an affordable solution that creates up to 55,000 PSI in operating pressure to make your cuts happen. Manufactured with the idea of requiring less maintenance, it’s also easily accessed when necessity dictates. The V-Series CNC Waterjet also comes with an optional closed water filtration system, abrasive removal system, or intensifier ranging in power from 30 HP to 200 HP.
Materials Cut
- Steel
- Stainless Steel
- Aluminum
- Glass
- Stone
- Expanded metal
- Plastic
Applications
- Sign making
- Stone and tile machining
- Automotive parts fabrication
- Small job shops and general parts
- Foam cutting
- Gasket manufacturing
- HVAC
Standard Features
- EZ Control® and EZ G-Code®
- Unlimited file size transfer
- 60” x 122” steel slat bed
- Abrasive feeder/hopper system
- KMT Tri-Line Pump 60K PSI
- Precision dual X-axis drives
- Unlimited file size transfer
- High volume fume extraction
Specifications
- Z-axis clearance: 6”
- Z-axis travel: 6”
- Cut speed: 600 IPM
- Rapid traverse: 1,000 IPM
- Repeatability: +/- 0.001”
- Drive system X and Y axis: rack and pinion
- Drive system Z axis: lead screw
