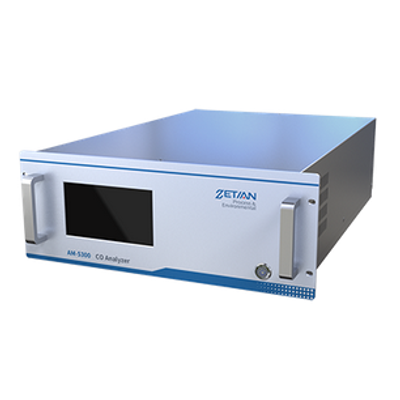

Zetian - Model AM-5300 -CO Analyzer
Based on the Non-Dispersive InfraRed (NDIR) Technology, the CO Analyzer adopts modular structure design and combines with advanced Micro-processing Technology to provide accurate and reliable CO detection of “ppm” level, which meets application requirements of atmospheric detection.
Most popular related searches
air quality monitoring system
carbon monoxide analyzer
industrial air quality monitoring
air quality monitoring
NDIR hydrocarbons
industry air quality
NDIR technology
air monitoring system
industrial air monitoring
air monitoring
- High sensitivity, high repeatability, simple operation
- The parameters of the instrument can be automatically monitored
- Support remote calibration and diagnosis
- Self-check function of light intensity attenuation
- Adaptive Signal Filtering Technology optimizes response time
- Large capacity memory, store historical data automatically
- Applied to atmospheric monitoring
- Measuring range: 0~50ppm, 0~1,000ppm (adjustable)
- Unit: ppb, ppm, ug/m3, mg/m3
- Zero noise:<0.02ppm (RMS)
- Limit of detection: 0.04ppm
- Zero drift:<0.1ppm/24h
- Span drift:<0.5ppm/24h
- Response time:<120s (T90)
- Linearity:<1%/F.S.
- Repeatability:<1%, 50ppb
- Sampling flow range: 800SCCM±10%
- Ambient temperature: 5℃~40℃
- Dimension: 178mmx430mmx635mm
- Weight:<20kg
- Power: 200V~240V, 50/60Hz, 400W
- Analog output: 10V, 5V, 1V, 0.1V (selectable)
- Communication: RS232, RS485
