CO2 Essential Oil Extractor
Supercritical extraction technology is an advanced separation process that is currently emerging internationally. It takes CO2 as solvent. Because of some characteristics of CO2 under super critical condition, non-polar substances like essential oil, vegetable wax, pigment.etc. can be easily extracted and separated with the solvent. It is especially suitable for start-up companies and/or product testing and R&D. If you look for an economic one, you can find our essential oil distiller.
- Material: 304 stainless steel
- Extraction time: 10 minutes
- Feature: highest purity, CO2 recovery
- Capacity: 0.5-50L
- Application: essential oil extraction, TCM extraction, separation of bacterial products, etc.
- Quality. The separation kettle can be removed freely, so there will be no residual left every time, which ensures the extraction purity.
- Quiet. Whisper quiet pumps with variable flows.
- Quick. With right pressure, the whole extraction process only take 10 minutes.
- Improved Details. Our extraction kettle is equipped with a white iron filter of 20-30 um, improving extraction rate.
- All high-pressure tanks designed and tested in accordance with ASME specifications.
- Intelligent extraction and monitoring to ensure extraction effect.
- Energy-saving. The extraction process is carried out in a way of slow flow, thus saving CO2 consumption. At the same time, the 95% CO2 gas can be recovered.
- It has powerful memory function to record some important parameters of pressure and time in the whole process.

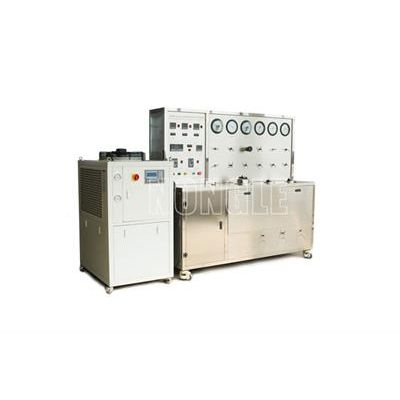

This device mainly consists of extraction kettle, separation kettle, fine distillation column, CO2 high pressure pump, entrainer pump, refrigeration system, heat exchange system, purifying system, pressure stabilizing system of extraction kettle, CO2 tank, flow meter, temperature and pressure control( protection) system etc.
Pharmaceutical industry:
- Extraction of active ingredients of traditional Chinese medicine.
- Concentration of raw materials for pharmaceuticals.
- Concentration and purification of the lipid mixture.
- Removal of organic solvents.
Food Industry:
- Separation of bacterial products
- Extraction of flavors and fragrances
- Extraction of animal and vegetable fats and fat-soluble components
- Extraction of plant alkaloids
- Extraction of food coloring
- Deodorization, decolorization, deacidification and removal of organic solvents
- Removal of harmful toxic substances.
Cosmetics industry:
- Extraction of essential oils and spices; (2) Refinement of essential oils and spices
