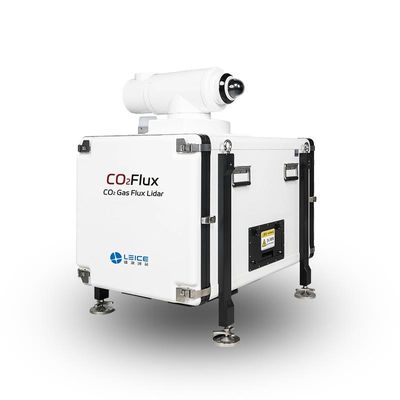

Leice - Model CO2FLUX -CO2 Gas Flux Lidar

With features such as miniaturization, low power consumption, and high accuracy, it can perform all-weather, continuous monitoring of wind profiles, CO2 column concentrations, CO2 concentration profiles, and signal-to-noise ratio data products.

It is applied to various scenarios of CO2 gas monitoring needs, such as carbon flux distribution in key areas, emission source localization, urban or regional carbon accounting, etc. The company also provides flexible inversion algorithms and customized business software, offering users comprehensive solutions and services.

• High accuracy
• High resolution
• Compact design
• CO2 flux analysis
• Eye-safe
• Unmanned operation

• Maximum Detection Distance: ≥3km(clear skies and cloud-free detection conditions)
• Spatial Resolution: 30m/60m /90m(configurable)
• Time Resolution: ≤5min
• CO2 Accuracy: ≤1.5ppm
• Wind Speed Measurement Accuracy : ≤0.1m/s
• Wind Direction Measurement Accuracy : ≤3°
• Weight: ≤140kg

CO2 column concentration, CO2 profile, wind profile, CO2 flux, aerosol extinction coefficient, backscatter coefficient, signal-to-noise ratio.

• Air Quality Improvement and Management in Key Regions
• Three-Dimensional Monitoring and Emission Accounting of Greenhouse Gases
