ZOGLAB Microsystem Co., Ltd
ZOGLAB - Model DHM1200 -CO2 Hand Held Meter
NDIR (non-dispersive infrared) waveguide technology, 5 years working capacity. CO2 measurement accuracy up to 40ppm~70ppm. Key query operation, MAX / MIN / AVG value available. White LED backlight for working in bad light condition.
Most popular related searches
NDIR hydrocarbons
NDIR technology
environmental instrument
flame retardant
portable carbon dioxide meter
NDIR
dispersion technology
carbon dioxide meter
sample temperature
Measuring Data
- CO2Measuring Range: 0~2000ppm , 0~5000ppm , 0~10000ppm
- CO2Accuracy: ±70ppm , ±40ppm
- CO2Resolution: 1ppm
General
- Sampling Interval: 2s
- Working Temperature: -30?~70? , Best fit 0?~50?
- Storage Temperature: -50?~90?
- ESD Protection: ±25KV
- Auto Power Save: 5 mins
- Battery: AAA battery × 2
- Battery Lifetime: ≥20 hours(Without alarm)
- IP Class: IP50
Sensing Probe
- Model: NDIR
General Feature

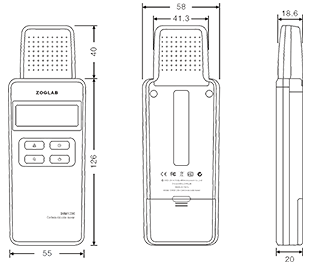

- Dimensions: 166×58×20mm
- Housing: ABS+PC,flame-retardant,toxicity and halogen free
- Display Area: 47×16mm
- Weight: 110g
