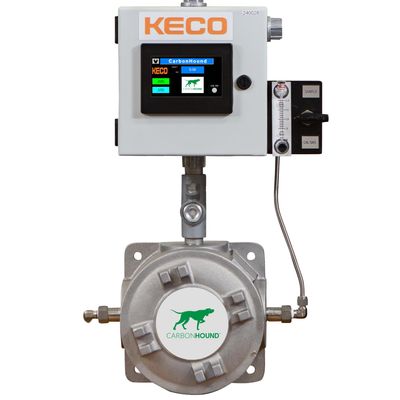

Keco - CO2 Process Analyzer

The CarbonHound provides continuous on-line analysis based on the specific non-dispersive infrared principle of operation. A precision flowmeter regulates the sample flow to approximately approx. 1.5 SCFH. Next, the sample is introduced to the specific infrared detection element that provides an output proportional to the concentration of carbon dioxide. This signal is digitized and analyzed by the advanced microprocessor HMI (Human Machine Interface) and related software resulting in a 4-20 mA output, relay alarms, and RS-485, TCP/IP Ethernet. The color touch screen LCD display provides the current reading, previous reading, any alarm conditions, historical and real-time charts, procedure prompts (i.e., calibration procedure), and failure indicators (local and remote capability). Quality materials are selected for compatibility and are utilized throughout fabrication. Special attention is given to wetted parts that come in contact with the process stream and are selected to be non-reactive.

• Measurements: Carbon Dioxide (CO2)
• Industries: Chemical, Environmental, Gas Processing, Natural Gas Pipeline, Biogas, Food & Beverage, Landfill, Midstream, Upstream
• Series: CO2 Analyzers
• Type: Process Analyzers, Gas Analyzers
• Model: CarbonHound

• Measure CO2 in Nat Gas, Biogas, Landfills
• Built for Division 2 and Zone 2 hazardous locations
• Automatic Calibration
• Low maintenance — solid state design
• NDIR sensor life measured in years
• Outdoor weather packaging
• Large color touchscreen HMI with data logger
