ZOGLAB - Model DST1200 -CO2 Transmitters
NDIR (non-dispersive infrared) waveguide technology. CO2 measurement accuracy from 40ppm to 70ppm optional. Varies measurement range available. Optional analog signal or RS485 output. Wide angle view LCD screen with CO2 readings in real time. Toxicity and halogen free material, complying with GXP standard.
Most popular related searches
NDIR hydrocarbons
NDIR technology
environmental instrument
flame retardant
carbon dioxide transmitter
NDIR
dispersion technology
temperature transmitter
Measuring Data
- DP Measuring Range: 0~2000ppm,0~5000ppm,0~10000ppm
- DP Accuracy: ±70ppm,±40ppm
- DP Resolution: 1ppm
General
- Power Supply: 4~20mA (0.02×RL+10V)<UV<30V DC
- 5V~28V DC (0~5V 8V DC~28V DC 0~10V 14V DC~28V DC)
- Working Temperature: -30?~70? , -40?~85?(No display) , 0?~50?(Best fit)
- Storage Temperature: -50?~90?
- Transmitter Type: 3 wire 4~20mA,Voltage output,RS485
- Analog Output: 4~20mA RL<(UV-10) / 0.02< 500Ω , 0~10V -1mA<IL<1mA , 0~5V -1mA<IL<1mA
- 0~1V -1mA<IL<1mA
- Power Consumption: Average currents 35mA , peak current 305mA(24V DC)
- Digital Output: RS485(Only for DD version)
- ESD Protection: ±25KV
- IP Class: IP50
Sensing Probe
- Model: NDIR
General Feature

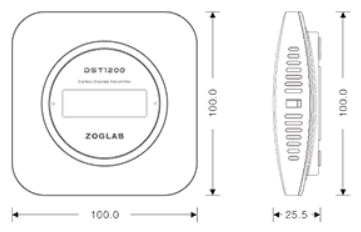

- Dimensions: 100.0×100.0×25.5mm
- Housing: ABS+PC,flame-retardant,toxicity and halogen free
- Weight: 83g
