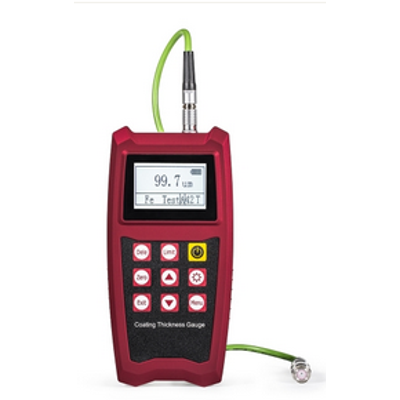

Leeb - Model UEE 920 -Coating Thickness Gauge

SHARE

Measuring Materials: Magnetic Induction (Fe): Measuring the thickness of Non-magnetic coating on magnetic metal substrate, such as aluminum, chromium, copper, zinc, rubber, paint on the base of steel, iron, alloy and magnetic steel. Eddy Current (NFe): Measuring the thickness of Non-conductive coating on non-magnetic metal substrate, such as rubber, plastic, paint, oxide on the base of aluminum, copper, zinc, tin.

Most popular related searches
coating thickness monitoring
thickness monitoring
eddy current measurement
transmission data
material testing
chromium
  • With high quality metal probes.
  • Large memory to save 4 types of materials and 1560 testing values.
  • Software for PC connection and data transmission, analysis.
  • Two measuring methodsxontinuous and single;
  • Two working mode: direct and batch;
  • Limit setting function.
  • Switch off automatically or manually.
  • 3 ways for easy Calibration: by one specimen, two specimens or five specimens to finish calibration..
  • Five statistics: Average, Max, Min, Testing times, Standard deviation.
  • Standard delivery with 5 calibration specimens (48.5m. 99.8m, 249m, 513m, 1024m)
  • 3 years warranty and life-long services
