Hitachi High-Tech - Model CMI255 and CMI257 -Coating Thickness Gauges for Metal Finishing
Advanced coating thickness on ferrous and non-ferrous metal substrates. Quality Assurance For Thickness Of Paint, Lacquer, Zinc And Other Protective Coatings On Metal Substrates.
Two probe configurations designed to fit your measurement needs
The CMI255 and CMI257 coating thickness gauges offer dual technology along with high reliability testing of protective and decorative coatings applied to steel, iron, aluminium and other metals. With on-board statistics to review a series of measurements and the ability to account for variations in substrate materials, our CMI255 and CMI257 are superior quality assurance and inspection tools for:
- Paint & powder coaters.
- Electroplaters.
- Galvanizers.
- Coating inspectors.
- Automotive and aerospace finishers.
These compact, handheld gauges are factory calibrated and automatically select the best measurement technique for the base material. The gauges are durably designed, include a rubberized cover and meet IP52 environmental protection standards to withstand use in harsh conditions.

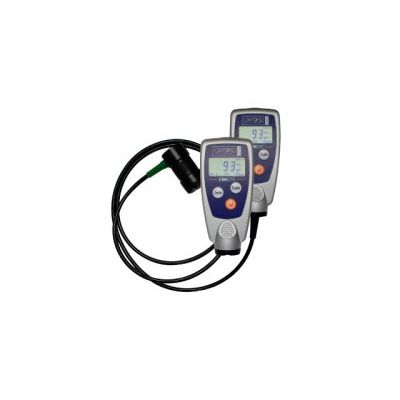

The CMI255 features an integrated probe for single-handed operation. The CMI257 features a tethered probe for taking measurements on locations that are more difficult to reach.
- On-board statistics.
- Base re-zero function.
- Factory calibrated.
- Automatic substrate detection.
- Integrated or external probe configuration.
- IP52 protection against dust and water
- Body dimensions: mm: 110 (L) x 50 (W) x 25 (D) in: 4.3 (L) x 2 (W) x 1 (Q).
- Probe dimension: mm: 24 x 47 in: 1 xl.8.
- Weight: CMI255 - 90 g (3.2 oz) 140 g CMI257 - (5.0 oz).
- Battery: 2 x AAA.
- Protection: IP52 (dust and dripping water).
- Convex radius: 5 mm / 0.2".
- Concave radius: 50 mm / 2",
- Clearance: CMI255 -125 mm / 5" CMI257 - 50 mm / T.
- Measurement area: 10 mm x 10 mm / 0.4" x 0,4".
