Hitachi High-Tech - Model CMI95M -Coating Thickness Handheld Gauges for PCB Copper
Our CMI95M is easy to use – just place the unique soft-touch probe on the copper surface and note the thickness measurement on the indicator. This gauge uses field-proven microresistance technology to sort copper foil and laminates by thickness. The CMI95M is robust, affordable and highly accurate. Because it is factory calibrated it does not require the use of standards. Common applications for the CMI95M are: PCB manufacturing and assembly. Copper surface thickness.
CMI95M
- Easily identify out of spec copper foil quickly and accurately to avoid scrap and rework costs.
- Soft touch probe prevents the copper surface from being marred or scratched, eliminating board damage.
SPECIFICATIONS:
- Dimensions: in: 2.5” (W) x 1.25” (D) x 4.1” (H). mm: 66 (W) x 32 (D) x 104 (H).
- Weight: 4.4 oz (125 grams).
- Battery: 9V, user replaceable.
- Range: oz/ft2: 1/8, 1/4, 3/8, 1/2, 1, 2, 3, 4. μm: (5, 9, 12, 17, 35, 70, 105, 140).

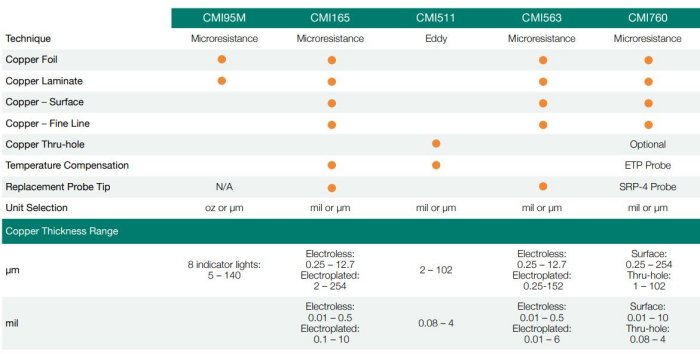

PCB GAUGE COMPARISON CHART:
We offer multiple choices for a PCB gauge within the PCB industry to provide you with the best and most cost-effective solution available for your application needs. Please reference the comparison chart below or contact us at contact@hitachi-hightech-as.com for our expert advice.
- Battery operated with low battery warning.
- CE approved.
- Factory calibrated.
- Proven durability.
- Simple to use.
- Exclusive soft touch probe.
