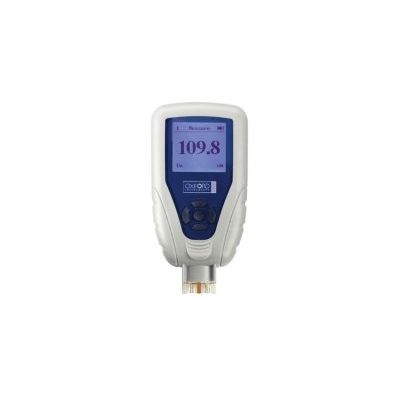

Hitachi High-Tech - Model CMI165 -Coating Thickness Handheld Gauges for PCB Copper
Temperature can affect the measurement on a copper sample. Our CMI165 can compensate for the temperature to produce accurate in-process inspection results regardless of the tempature of the copper. It is an ideal gauge for quality assurance and inspection for: PCM manufacturing and assembly. Copper surface thickness.
Most popular related searches
thickness monitoring
handheld thickness gauge
PCB
coating thickness monitoring
ore sorting
PCB waste
temperature monitoring
Our CMI165 gauge is versatile and portable. It comes equipped with a protective case and its durable design can be taken into the harshest environments. The CMI165 is a good choice to:
- Measure Cu on hot or cold PCBs.
- Reduce waste by eliminating the need for coupons.
- Measure Cu thickness on foils or laminates in μm, mils or oz.
- Sort Cu by weight at incoming inspection, prior to drilling, shearing or plating.
- Quantify Cu thickness after etching or planarizing.
- Verify Cu plating thickness on PCB surfaces.
- Measure thin etched traces down to 204 μm without use of standards.
- Temperature compensation.
- Durable design.
- Proprietary SRP-T1 replaceable probe.
- Illuminated probe tip for easy positioning.
- User interface in English or Simplified Chinese.
Proprietary SRP-T1 Measurement Probe
- Replaceable Probe Tip – no recalibration necessary.
- Ensures no factory downtime.
Specifications
- 4-point electrical probe with resistance method to ensure compliancence with EN 14571.
- High repeatabilty and reliability.
- Statistical analysis includes data recording, average, standard deviation and high-low reporting.
- Factory calibrated and certified.
- Customisable for specific applications.
- Static or continuous mode measurement.
- Powered by AA batteries.
