Hitachi High-Tech - Model CMI511 -Coating Thickness Handheld Gauges for PCB Copper
The CMI511 has an exclusive temperature compensation feature for in-process thickness measurement to reduce scrap and costly rework. Its automatic temperature correction makes it highly accurate even for measurement on boards that have just been lifted from the plating tank. This gauge is an ideal choice for: PCB manufacturing and assembly. Thru-hole copper thickness.
The CMI511 does not require standards because it factory calibrated ensuring its performance is always highly accurate. It is ideal for double-sided and multilayer boards, even plated with tin and tin/lead. The CMI511® provides instantaneous measurements, and is so easy to use that no operator training is necessary. Our CMI511 comes complete with a carry case that features a plastic window which allows use of the gauge even without removal from the case.

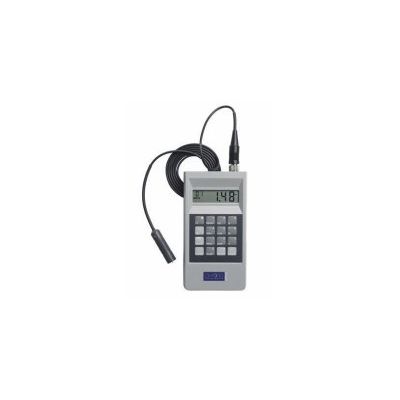

CMI511 Thickness Gauge With 3 Digit Lcd Display
- Automatic unit conversion (mil/µm).
- Programmed drift compensation.
- PCB parameters (high/low) limits.
- Minimum hole size: 35 mils (899 µm).
- Keypad: 16 function/10 numeric.
- LCD Display: 1/2” (12.7 mm).
- Resolution: 0.01 mils (.25 µm).
- Accuracy: mil: ± .01 at < 1, ± 5% at > 1. μm: ± .25 at < 25, ± 5% at > 25.
- Memory capacity: 20 measurements.
- Statistical display: Number of readings, standard deviation, average, Cpk, high/low.
- Battery: 9V dry cell (50 hrs.) included.
- Weight: 9 ozs (255 g).
- Dimensions: 3 1/8” (W) x 1 3/16” (D) x 5 7/8” (H). 79 mm (W) x 30 mm (D) x 149 mm (H).
