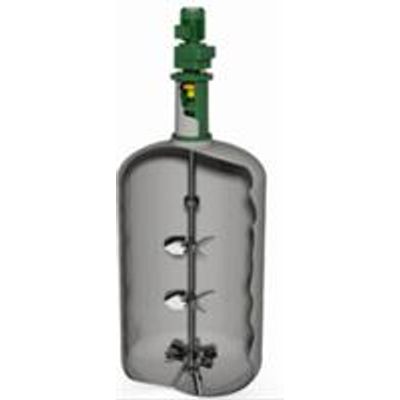

Greatwall - Model GMC Series -Coaxial Gear Driven Top Entry Mixers

• Power: To 90 kW(120HP)
• Speed: 1~500 rpm
• Torque: To 20000 N.m

• Technology: paddle
• Batch/continuous: batch
• Application domain: for the chemical industry, water treatment
• Other characteristics: compact

The main features:

• Precision designed gears provides compact structure and extra strength for longer life.
• Robust bearings lives in excess of 100,000 hours.
• Lifetime lubrication for some small size provides easy maintenance.
• Motor adapter ensures fast, positive motor alignment and quick replacement.
• Strong pedestal bearing design can isolate the shock to gearbox and ensure gearbox longer life.
• Various seal types can be adopted to meet different requirements.

The GMC series mixers can be used for most small to middle size applications, from critical to routine.

• Chemical--------
• Water and waste water treatment---------
• Flue Gas Desulfirization (FGD) --------
• Petrochemical ---------------
• Mineral process------
