Cobett - Model LB -Float Valve Waterer System
The Model LB Float Valve System is engineered to endure harsh winter conditions while providing reliable water access for two to three heads. It features a unique heating mechanism where the entire water tub is continuously and directly warmed by a substantial column of ground heat, effectively preventing freezing in both the valve and plumbing even during zero traffic periods. Maintenance is straightforward; the tub can be easily lifted out for cleaning. The Model LB Waterer has a drinking height of up to 20 inches and a capacity to serve either up to 200 dry lot beef heads or 100 range cows. The waterer, tub, and float are constructed from 1/4 inch polyethylene plastic, while the base tube is made from 3/16 inch polyethylene plastic, with optional insulated tubes available for added thermal protection. The system offers different valve options to accommodate various pressure feeds and capacities, ensuring versatile applicability across different farming needs.

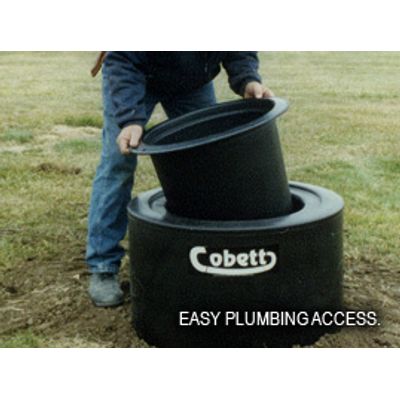

The Model LB with Float Valve System features unmatched winter endurance for two to three head access. The entire tub of water is constantly and directly warmed by the wide column of ground heat that prevents freezing of the valve and plumbing, even with zero traffic. Cleaning is easy — lift out the tub, swirl the water and empty it out.
Model LB Waterer:
29″ D x 48″ H
Ship Height: 49.5″
Ship Weight: 100 lbs.
Scroll to the bottom to see 3 Base Tube options.
Key:
1. Lid (extended non-use)
2. Model LB Waterer
3. Tub
4. 5 1/2” Polyethylene Float
5. 3/16” Cord and 3/8” Sleeve
6. 3” Polyurethane Insulation
7. 1/2″ HD Valve
10. Support Rod
11. Quick Coupler & Adapter
13. Ball Valve
14. Flexible Hose
16. Anchor Rod
17. 36″ Base Tube
18. 1″ Polyethylene Waterline not included
Gallons: 18
Opening: 17.5”
Side Reach: 6.5”
Water Level: 2”-3” from top of tub
Drinking Height: 20″ Maximum or less
Waterer, Tub & Float Construction: 1/4” Polyethylene Plastic
Base Tube Construction:
— 3/16” Polyethylene Plastic
— 36” Tube – no insulation
— 61” & 87” Tubes partially insulated – 2” thick
Capacity:
— Dry Lot Beef: 200 Head
— Range Cows: 100 Head
VA-375-LB: 3/8″ HD Valve
Valve Pressure Feed
3/8” Orifice
Inside: 3/4” NPT
Outside: 1 3/8” Bolt Thd.
Avg: 40 PSI = 7 GPM
Max: 120 PSI = 16 GPM
VA-050-LB: 1/2″ HD Valve
Valve Pressure Feed
1/2” Orifice
Inside: 3/4” NPT
Outside: 1 3/8” Bolt Thd.
Avg: 40 PSI = 10 GPM
Max: 80 PSI = 18 GPM
VA-100-LB: 1″ HD Valve
Gravity Feed – Pond
1″ Orifice
1 1/4″ NPT
Max: 20 PSI
Capacity may be reduced!
