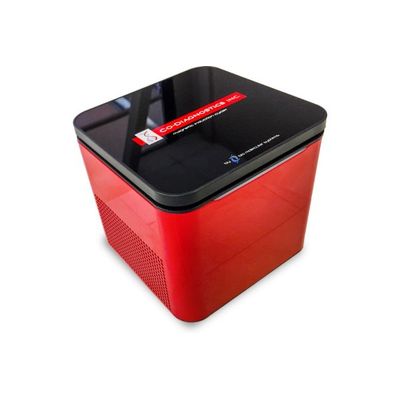

CoDx Box - Cutting-Edge Magnetic Induction Technology
The CoDx Box™ is cutting-edge magnetic induction technology powering the most advanced qPCR cycler ever, manufactured for Co-Diagnostics by Bio Molecular Systems, the original team behind Rotor-Gene 6000™, X-Tractor Gene™ and CAS-1200™. The CoDx Box’s compact design is not only portable, its fixed optical path and no moving parts require no optical alignment or calibration – ever. A qPCR cycler that NEVER requires calibration makes the CoDx Box a fast, flexible, and affordable qPCR solution suitable for any laboratory or institution, anywhere in the world.
Physical
- Height: 130mm (265mm lid open)
- Width: 150mm
- Length: 150mm
- Weight: 2.1kg
Electrical:
- AC Input: 100-240 VAC, 50/60Hz 4.0 A
Thermal Performance:
- Temperature Accuracy: ± 0.25°C
- Temperature Uniformity: ± 0.05°C
- Ramp Rates:Heating: 4°C/s Cooling: 3°C/s Temperature Input Range: 40 – 99°C
Optical
- Detectors: Photodiode per channel
- Excitation Sources: High energy light emitting diode for each channel
Channels:
- Green: Ex 465nm Em 510nm
- Yellow: Ex 540nm Em 570nm
- Orange: Ex 585nm Em 618nm
- Red: Ex 635nm Em 675nm
- Acquisition Time: 1 second
Reaction Vessels
- Samples per Instrument: 48Reaction
- Volume Range: 10 – 25 μL
Operating Environment
- Temperature: 18 – 35oC°
- Relative Humidity: 20 – 80%
The CoDx Box software is tailored specifically to both simplify and enhance the user experience of CoDx-designed tests.
