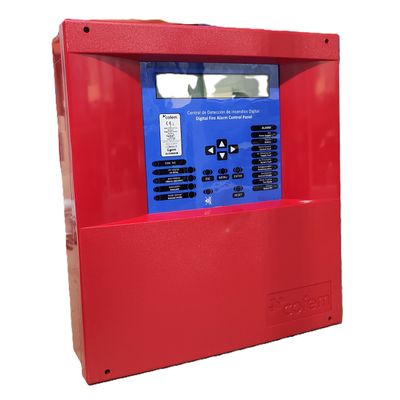

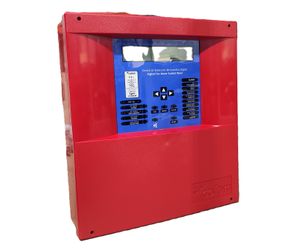

COFEM - Model C-LYON -Compact LYON Addressable panel with 2 loops. Capacity = 198 devices
Features
• Control panel configurable with 1 or 2 loops.
• Loop capability 99 points.
• All the points are supervised by the control panel, except the loop isolator KABY.
• Capacity for 64 configurable relays per control panel.
• Can hold up to 99 zones per panel.
• Registry with capacity of 4095 events with date and time.
• Delay of supervised sounder output programmable between 0 to 10 minutes, identified as S1.
• Alarm output as free voltage relay not supervised, identified as ALARM.
• Failure general output, as free voltage relay not supervised, identified as FAULT.
• Allowed to connect addressable sounders in the loop.
• Evacuation push-button.
• Backlit LCD display with 4 lines and 40 characters.
• Incorporates multiple languages by default (Spanish, English, French, Portuguese, etc).
• Configurable with the PC-EASY CoNET software.
• Connectable to external keyboard (standard PC-PS2).
• Access to the control panel keyboard introducing a numeric code.
• Allows connection of up to 8 repeaters and/or 8 control panels in network.
• Contact ID (on specific request).
• Size: 363 x 331 x 96 mm.
• Certified according to EN 54-2 and EN 54-4 and EN 54-4 and CE mark according to the European Regulation of Construction Products (UE) N°305/2011.
Cofem’s Compact Lyon algorithmic-directional control panel is certified under the EN 54-2 and EN 54-4 standards, complying with the latest fire safety directives.
Designed with the same functional architecture as Lyon Remote, this control panel maintains full compatibility with all its elements: from wiring and analog detectors to pushbuttons, modules and sirens. This ensures frictionless integration in new installations or technological upgrades.
Compact Lyon is the ideal solution for medium-sized spaces that have traditionally opted for conventional systems. Its leap to an algorithmic-addressable platform offers all the advantages of an intelligent system: detection accuracy, advanced customization and increased operational reliability. In addition, its network capability makes it a dynamic node within scalable installations.
Thanks to its inter-plant connection functionality, it can share information and operate collaboratively, behaving as an intelligent repeater that extends the control and security of the overall system. Compact Lyon is not only versatile, it is also scalable: technology designed to grow with the needs of the environment, without compromising quality, response or protection.
Control panel configurable with 1 or 2 loops.
• Loop capability 99 points.
• All the points are supervised by the control panel, except the
loop isolator KABY.
• Capacity up to 16 relays per loop, 32 totally.
• Can hold up to 99 zones per panel.
• Registry with capacity of 6601 events with date and time.
• Relay configuration with activation of 1, 2 or 3 alarm
detectors.
• Relay activation auto-configuration function.
• Allows the configuration of visual and/or sound devices of
the detector bases as loop powered relays.
• Delay of supervised sounder output programmable between
0 to 10 minutes, identified as S1.
• Alarm output as free voltage relay not supervised, identified
as ALARM.
• Fault output, delayed and supervised, identified as FAULT.
• Allowed to connect addressable sounders in the loop.
Evacuation push-button.
• Backlit LCD display with 4 lines and 40 characters.
• Incorporates multiple languages by default (Spanish, English,
French, Portuguese, etc).
• Configurable with the I-Link software.
• Access to the control panel keyboard introducing a numeric
code.
• Allows connection of up to 15 repeaters and/or 15 control
panels in network.
• Cofem Remote (on specific request).
• CRI functionality on demand.
• Size: 368 x 336 x 96 mm (with cover).
• Certified according to EN 54-2 and EN 54-4 and EN 54-4
and CE mark according to the European Regulation of
Construction Products (UE) N° 2024/3110.
