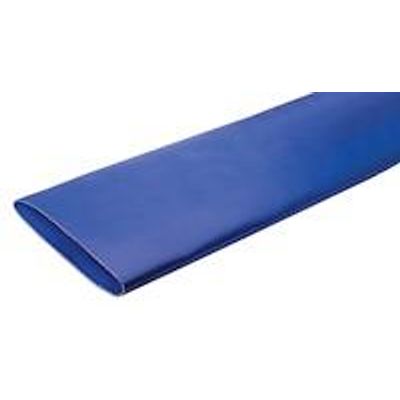

Kuriyama - Model OFAQ-100x660 OFAQ Series -Coil Length Polyurethane Potable Water Discharge Hose

Construction: Blue NSF®-61 polyurethane (TPU) hose using an extruded through-the-weave process with circular woven high tenacity polyester reinforcement.

Service Temperature Range

• Service Temperature [Min]: -50 ºC-58 ºF
• Service Temperature [Max]: 50 ºC122 ºF
• Intermittent Service Temperature: 79 ºC175 ºF

• Premium Polyurethane (TPU) Material -Exhibits exceptional resistance to abrasion, allowing for use in applications where severe abrasion is a factor and providing longer service life versus rubber or PVC hoses. Also, exhibits exceptional resistance to oils and petroleum based products.
• NSF®-61 Certified -Hose is certified under NSF®/ANSI 61: Drinking Water System Components.
• Unique Woven Construction -Specially designed weave pattern provides resistance to snaking, kinking, stretching and twisting.
• Longer Lengths -Available in 200 foot lengths and also longer 660 foot lengths to reduce possible leaking points.
• Smooth TPU Tube -Provides low friction loss.
• Compact Design -Flat hose design rolls up into tight coils for easy storage and transport, takes up less space than other hoses.
• Phthalate Free

Nominal Specifications

• Size: 1 in25.4 mm
• Hose ID: 1.004 in25.5 mm
• Wall Thickness: 0.071 in
• Working Pressure at 68ºF: 240 psi
• Burst Pressure at 68ºF: 725 psi
• Coil Length: 660 ft
• Weight: 0.11 lbs/ft

Specifications

• Brand: Kuriyama
• Type: Polyurethane Potable Water Discharge Hose
• Series: OFAQ
• Material: Polyurethane
• Color: Blue
• Reinforcement Material: High Tenacity Polyester Reinforcement
• Industry Standards/Certifications: NSF®
• Note: Recommended Operating PH Range: 4 to 9 below +86 ºF (+30 ºC) and 5 to 9 from +86 ºF (+30 ºC) to +122 ºF (+50 ºC).
