Colasit CMVeco - Plastic Radial Fan
FromColasit AG

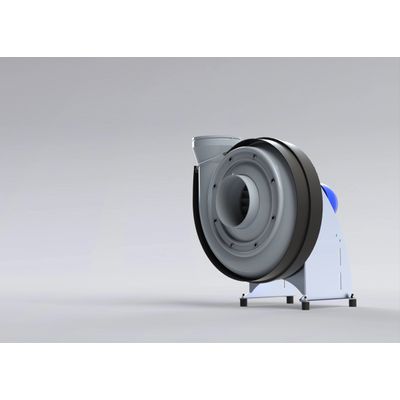

The Colasit CMVeco radial fan has been produced since 2009 and is a proven and absolutely reliable plastic fan. The CMVeco is available in various materials and drive concepts, and can be supplied for most applications with chemically aggressive gases and exhaust air.
Most popular related searches
Characteristics
- Volume flow: min. 150 m3/h to max. 13500 m3/h
- Static pressure: min. 50 Pa to max. 3000 Pa
- Efficiency (tot. mech.): up to max. 79 %
- Inlet and outlet Ø: 125, 160, 200, 250, 315, 400 mm
- Housing material: PE, PPs, PPs-el, PVDF, PVC, PPs white
- Impeller material: PPs, PPs-el, PVDF
- Drive: Direct drive, V-belt drive
- Support: Galvanised, Stainless steel
- Ex Protection: Version available in ATEX zones 1 + 2
