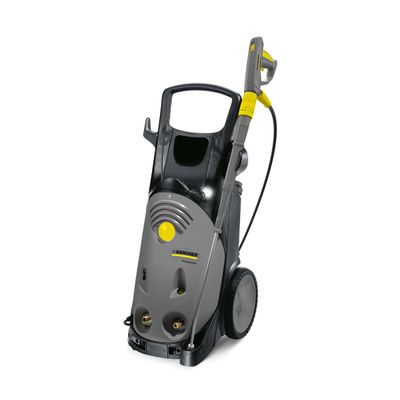

Karcher Super Class - Model HD 17/14-4 S Plus -Cold Water High Pressure Cleaners

SHARE

The HD 17/14-4 S Plus, an upright cold water high-pressure cleaner, is equipped with an EASY!Force high-pressure gun and Servo Control for pressure and water flow regulation. Cold water super class – for heavy-duty continuous operation For construction, agriculture, industry and municipal use – maximum power is needed. Working pressure, flow rates and equipment in the Super class are perfectly balanced. Please note that different country versions are available for most products: 120 V / 60 Hz or 220-240 V / 50 Hz.

Most popular related searches
high-pressure cleaner
high-pressure gun
high-pressure water
water flow regulation
high-pressure hose
oil level monitoring
spray gun
water cooling
flow regulation
level indicator

Just as tough as your demands: the robust and durable HD 17/14-4 S Plus cold water high-pressure cleaner with three-phase drive was developed for daily use in tough conditions. Its impressive washing performance – with a flow volume of around 1,700 litres per hour at a working pressure of 140 bar – impresses even our most discerning customers. The space-saving, upright construction style and the large rubber-tyred wheels guarantee very good manoeuvrability over bumps and stairs, as well as on rough terrain. New innovations guarantee effortless operation and time-saving set-up and dismantling: While the EASY!Force high-pressure gun makes use of the recoil force of the high-pressure jet to reduce the holding force to zero, the EASY!Lock quick-release fasteners make handling five times faster than with conventional screw connections, without losing any robustness or longevity. Equipped witha pressure switch control, the machine automatically switches off as soon as the trigger gun is no longer activated. Accessories can be stored in a separate nozzle compartment so that they do not get lost.

Save time and effort: EASY!Force high-pressure gun and EASY!Lock quick-release couplings.

Effortless operation at last: the EASY!Force high-pressure gun. EASY!Lockquick-release couplings: durable and robust. And five times faster than screws.


Proven Kärcher quality
4-pole water-cooled electric motor. Robust brass cylinder head and ceramic piston. Reinforced, unbreakable plastic chassis.
For increased safety
Integrated electronics system for machine monitoring. Automatic switch-off in case of low voltage range or overvoltage. Switches off in case of leaks or phase failure.

Outstanding mobility
  • Large rubber wheels for negotiating uneven surfaces, stairs and landings.
  • Proven sack truck principle for easy, ergonomic transport.
  • Spray gun, EASY!Force Advanced
  • Spray gun with soft grip
  • High-pressure hose, 10 m
  • Spray lance, 1050 mm
  • Power nozzle
  • Dirt blaster
  • 4-pole, three-phase motor with air and water cooling
  • Pressure cut-off
  • Integrated water fine filter
  • Electronic motor protection with LED display
  • Oil level indicator
  • Servo Control
  • Brass water inlet

Technical data

  • Flow rate (l/h) 650 - 1700
  • Working pressure (bar/MPa) 30 - 140 / 3 - 14
  • Max. pressure (bar/MPa) 154 / 15,4
  • Connection load (kW) 9,4
  • Weight (with accessories) (kg) 72,2
  • Weight incl. packaging (kg) 78,2
  • Dimensions (L × W × H) (mm) 560 x 500 x 1090
