- Process Data Collection Software / Process Data Visualization Software

0

Collect+ data collection and visualization software from METTLER TOLEDO can bring a new perspective to your processes by graphically representing process trends and enabling you to make informed business decisions. Transparent views into your operation are critical to maintaining high quality and profitable manufacturing.

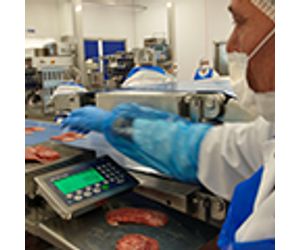

  • Connect your scales and other production devices
  • Use integrated dashboard tool for easy analysis of your operation
  • View your dashboards from anywhere in your plant, even on tablet PCs

System Requirements

Install Collect+ on a computer that meets the following minimum requirements:

  • 2GHz dual-core processor
  • Microsoft Windows 7 SP1 (32-bit or 64-bit), Windows 8.1, Windows Server 2008 R2 SP1, Windows Server 2012, or Windows Server 2012 R2
  • 4GB RAM
  • 200GB free HDD
  • Modern web browser (see below)

Collect+ can be operated using a modern web browser such as:

  • Microsoft Internet Explorer 11*
  • Google Chrome 35 or higher
  • Mozilla Firefox 30 or higher
  • Apple Safari for iOS7 or higher

* Internet Explorer is required for dashboard editing

Collect+ can store collected data in the following databases:

  • Microsoft SQL Server 2008 SP3
  • Microsoft SQL Server 2008 R2 SP2
  • Microsoft SQL Server 2012 SP2
  • Microsoft SQL Server 2014**
  • Microsoft SQL Server 2014 Express is included with Collect+


Centralized Data

  • Production data from any device stored in a central repository
  • Connect production devices with RS232 or Ethernet
  • Optimized collection engine can store millions of records

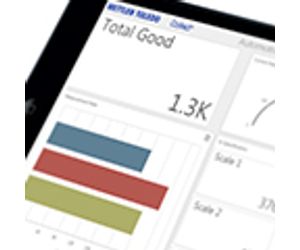

Graphical Visualization

  • Dynamic and engaging dashboards show current production status for easy analysis
  • Customized looks for any individual or role with the integrated dashboard tool
  • View dashboards from anywhere in your plant, even tablet PCs


Share the Knowledge

  • Web-based software means your information is available wherever you are
  • Save data as CSV and dashboards as PDF for data archiving
  • Live export to Microsoft Excel for advanced analysis or transfer to other systems
