Colmar Star - Model TM04M -Multirole Tamping Machine

Levelling, Lifting, Lining and Tamping Machine for Plain Track and Turnouts. Structure: Frame made of sturdy electro-welded girders. Two bogies, two motorized axles. Pneumatic brakes. 4 locking devices for the axle suspensions. Continuous and automatic UIC brake. Two emergency braking valves. Direct brake. Parking brake.

Most popular related searches

dust suppressant

dust control

level sensor

level monitoring sensor

The tamping machine is equipped with rope/sag system to measure track geometric parameters, computerized system for data processing and job planning. The measuring system allow the recording of the following parameters:

Gauge
Transversal level
Alignment to the rail
Longitudinal level
Skew
Sensor to measuring the geometry of the track when loaded.

Shift of lifting system of 3.000mm from track longitudinal axis
Longitudinal advancement
Nebulisation system for dust suppression.
Soundproof front cabin.
Soundproof rear cabin.
Working cabin.
Rotating brush.
Hopper for ballast/ conveyor belt from revolving brush.

Optional:

Regulating unit.
Compacting units.

Colmar Star - Model TM04M -Multirole Tamping Machine

Checking, Measuring, Recording:

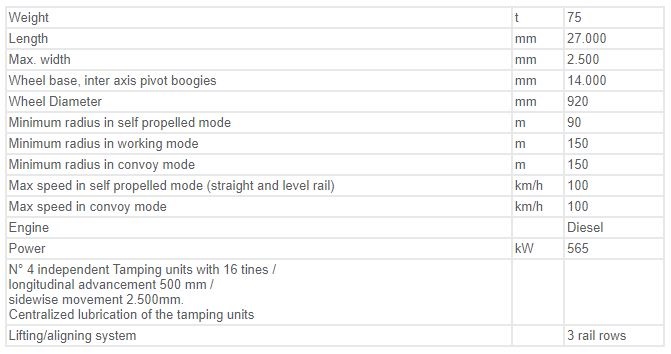

Technical Characteristics

Shift of lifting system of 3.000mm from track long...
