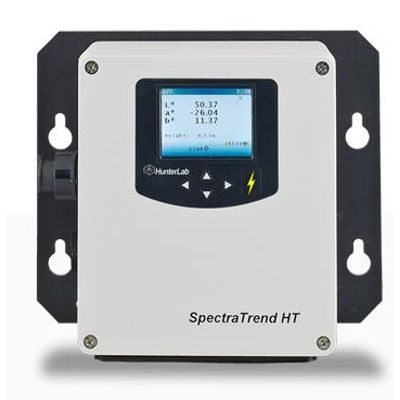

Hunter - Model SpectraTrend HT -Color Process Monitoring and Analysis Spectrophotometer

Real-time process color monitoring. Non-Contact color measurement.

SpectraTrend HT supports implementation of today’s Total Quality Management programs such as LQM, PAT, Six Sigma, DMAIC, and others that share a common goal of producing consistent product quality and reducing waste. SpectraTrend HT utilization can facilitate continuous monitoring of product Height to enhance Good Manufacturing Practices (GMPs) within their enterprise, reduce risk of color quality variation and associated costs through real-time process color monitoring and enhance consistency and predictability of their quality assurance approach.

• Measurement Principle: Dual-beam in-line/in-process spectrophotometer or colorimeter
• Geometry: 0°/ 30° typical
• Spectrophotometer/Colorimeter: Sealed optics; 256-element diode array; high resolution concave holographic grating
• View Diameter: 25.4 mm (1 in) (at 3.25-inch from sensor window)
• Specular Component: Excluded
• Spectral Range: 400 nm - 700 nm
• Spectral Resolution: < 3 nm
• Effective Bandwidth: 10 nm equivalent triangular
• Reporting Interval: 10 nm
• Photometric Range: 0 to 150 %
• Light Source: Full spectrum, balanced solid state LED system
• Flashes per Measurement: 5-6 flashes
• Lamp Life: 5 years typical
• Minimum Interval between Measurements: 1 second
• Height Resolution: 1 mm or 0.1 in
• Working Range: 63.5 mm - 140 mm (2.5 in. - 5.5 in.)
