Steiel - Model MCO14 - Colorimetric ...

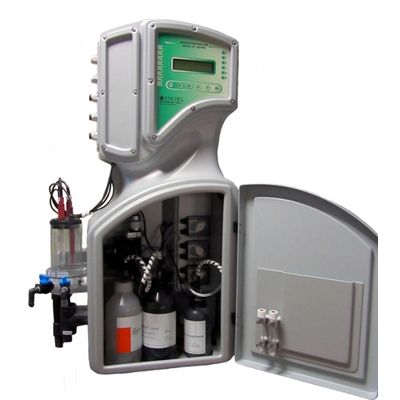

Steiel - Model MCO14 -Colorimetric Unit

FromSteiel Elettronica S.r.l.

SHARE

Management of the analyses and controls of the main parameters in swimming pool plants. Easy and intuitive interface software. Large 2-row LCD. 4 measurement inputs that can be factory configured accordingly to customer request. Monitoring of pH (0…14.00 pH), redox (-1000…+1000 mV) and temperature (-50…+200°C) levels with specific probes. Colorimetric analysis of free (0…5.00 ppm) and total (0…2.00 ppm) chlorine in pool water.

Most popular related searches

swimming pool plant

colorimetry analysis

setpoint temperature controller

water chlorination

Colorimetric reading with optical system
Output relays that can be configured as set points, alarms or proportional control (time or pulse based)
Optional 24 Vac output for driving small dosing pumps or solenoid valves
2 current outputs with galvanic insulation from inputs and microprocessor
RS232 port for communication with PC, RW14 tele-control system or µMMC data recorder
OFF input to disable control relays
Output for remote indication of the device correct functioning
Alarms and errors (diagnostics) directly shown on the display
Date and time label constantly displayed, even when the unit is unplugged, and ability to enable / disable operations at scheduled times (e.g. during the night)
Configuration and calibration data saved in the nonvolatile memory for at least 10 years
