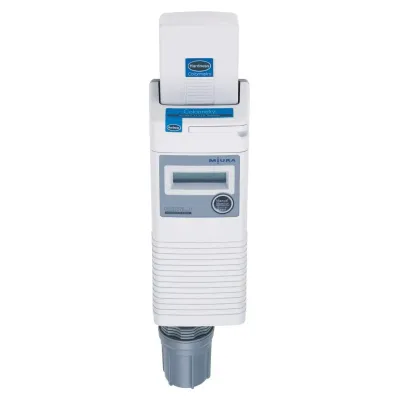

Miura - Model CMU-324HE -Colorimetric Water Hardness Detection Device
Miura’s Colormetry CMU-324HE is a cutting-edge hardness detection device that utilizes advanced colorimetric analysis to meticulously monitor ionic concentration in pre-treated soft water. Designed to eliminate the drawbacks of incorrect readings and labor-intensive manual checks, this unit samples the system’s softened water and rigorously tests for harmful contaminants that the softener system should have removed. If hardness is detected, the Colormetry unit promptly alerts the boiler operator both visually and audibly, and initiates automated countermeasures with integrated reagent injection, mixing, and thorough evaluation via the sophisticated boiler control system. Featuring automated scheduled testing with customizable intervals, seamless communication with Miura components or building automation systems, and an intuitive signaling mechanism for softener regeneration, the Colormetry ensures operational efficiency and reliability. With self-calibrating capabilities and easy-to-replace cartridges and filters, it significantly reduces maintenance time, while its alarm and fault history logging aids operators in swiftly addressing potential issues.
Automated Scheduled Testing
Periodically samples softened water, and performs colorimetric analysis to determine hardness concentration. These timed increments can be set from every 30 minutes to every 240 minutes
Communication
Communicates testing results with Miura components or building automation system to alert operators of a problem and to initiate countermeasures. When a Miura boiler receives a hardness caution, the boiler responds by temporarily increasing the surface blowdown to prevent scale formation.
Signals Softener Regeneration
If hardness leakage is detected, the Colormetry unit can signal the MW-U softener to start regenerating. Utilizing its dual-tank design, the active and idle tanks will swap, providing the boiler system with soft water once again. Then, the leaking tank will be regenerated via a saline wash to replenish the softener resin’s effectiveness.
Easy-to-replace Cartridges and Filters
When the reagent cartridge reaches low capacity, the cartridge status light will illuminate signaling a replacement is needed. Simply release the cartridge lock, pull out depleted cartridge, insert new cartridge and close lock to continue normal testing operations.
Self-Calibrating
The Colormetry unit performs a true-zero test before every automated sampling. This saves valuable boiler operator time and ensures accurate results from every test.
Alarm and Fault History Logging
When an alarm or caution is signaled, the Colormetry unit displays the alarm fault codes that assist the operator in resolving the problem and sends fault code information to the Miura Online Maintenance (MOM) program. Up to five previous cautions or alarms are stored for operator reference.
