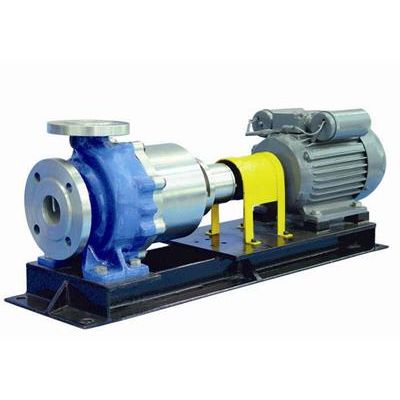

Colossus - Model CMY -Magnetic Drive Pump
Single-Stage, Single Suction/Two-Stage Single-Suction Horizontal Cantilevered. Radial Split Vortex. Pump Shell Centre Supported. Upright Inlet and Outlet.
Applaction:
- Oil Refining / Petrol-Chemical / Power Plant / Pharmaceutical Industry / Sewage Treatment
Medium:
High Temperature Fluid
High Pressure Fluid
Mild-Corrosive Fluid
Specification:
Highly efficient magnets
High Temperatures Resistance
Optimally material of the bearings reduce friction losses
Non-contacted magnetic drived motors
leakage Free
Equipped with self-cooling system
Simple integrated structure
Higher effective and reliable
Low noise, turbulence and space occupation
Low Capital Cost
Structural Features:
Flow ： 3~400m3/h (13~1760 US GPM）
Head: 10~240m (33~788 FT)
Temperature： -45~420℃ (-49~788 ℉)
Power： ≤ 160 kW (≤215 HP)
Pressure： ≤ 4.0Mpa (≤580 PSI)
Speed: 2950r/min or 1450r/min
Design Features:
Magnetic Rotors
Sealess pump using non-contacted magnetic rotors in replace of traditional mechanical seals reduces the excess load damages to the motor and pump.
No Lubricated Needed
Reduce energy consumption.
Long-Coupled Electromotor and Bearing Bracket
Reduces the vertical load to the motor and balances out the turbulence in the process of magnetic transmission.
Ceramic and Alloy Sliding Bearing
Reduce the frictional resistance and lose of mechanical power, and greatly increase bearing life.
Titanium Alloy Spacer Sleeve
This material has high electric-resistance and high magnetic permeability; this feature will reduce the eddy loss while ensuring the strength and corrosion-resistance.
Monitoring System
Provides automatic alarm system which will cut off the power in emergency situation. This effectively minimizes the environment damage caused by the leakage of hazardous and toxic medium, and save the energy.
