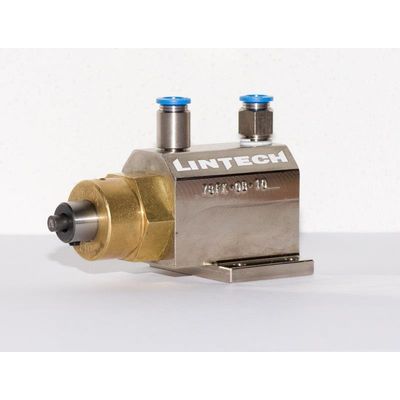

Lintech - Model 78 -Columbia Marking Tools - Air Impact Markers
This air operated marking tool offers 18 times the force of an air cylinder with the same bore. Compact construction allows this marker to be installed in limited space.
Most popular related searches
air valve
position sensor
valve operator
integrity monitoring
forced air
foot protection
lubricant system
corrosion protection
- 2 basic styles include Standard or Submersible
- Models Submersible models are specially coated in a non-corrosive material for additional protection.
- Foot or Rear mounting styles
- The Keyed rod is to maintain character orientation, and the non-keyed rod allows the characters to rotate and is a smaller unit
- 4 Different rod styles to hold the stamps offer multi-character square “A” pockets, and single character round “B” pockets, in addition to “O” style set screw retention, and “G” style pin/o-ring retention.
- The “G” style rod is recommended for systems susceptible to vibrations
- 2 different cylinder approach strokes: 1” and 2”
- Integrated position sensors offer the added benefit to integrators
- Standard system requires lubricated air. The NL non-lube version is required for “dry” air.
- Recommended Air Hose : min. 8 mm
- Recommended Air Valve: 1/4" 4- way valve
- Operating pressure: 1,3 - 5,5 bar
- Max. Marking Pressure : 680 kg (5,5 bar) for stroke 25,4 mm and 1000 kg (5,5 bar) for stroke 50,8 mm
- Max stroke distance: 25,4mm and 50,8 mm
- Dimensions (L x W x H) mm: 100 x 57 x 70
