Comate - Model CAE820 -Protable & Movable Analyzing System
CAE820 protable & movable analyzing system for compressed air network. Measure the flow lose cause by instrument in the network. Measure the air flow, temperature, pressure and power consumption for single compressor or compressor group. All data on tablet APP for customer to review. Generate detailed report with data graphs, power efficiency etc for analyzing.
- Universal design, fit in inlet pipe from DN25~DN100(1’’~4’’)
- Flow meter installed on inlet pipe, easy to install, no need of pipe working
- One cell phone can read all data and set the system, very easy to operate
- Generate a report of all data and email to users automatic

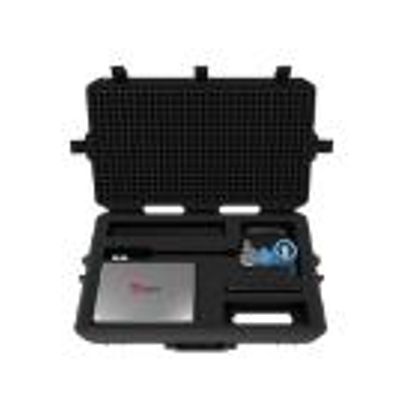

- Protable & movable design, one free case provided to hold the whole system
The system integrated flow meter(temperature & pressure measurement inside), o read or set the system, customer only need to use an tablet installed COMATE APP. All the hardware ingredients in the system will transfer data to PTF600 flow meter and the flow meter will communicate with cell phone/ pad. Anyone can easily read the data or set the system. Users will be able to know the standard flowrate, FAD flow rate, pressure, power consumption and efficiency and the load/off loading times, the energy intensity and power ratio. The APP also can generate an detailed report with curve diagram to help customer to know the condition of the compressor better or even compare the tested comressor with another compressor.
What are included in the system?
One set of PTF600 pitot pipe flow meter and hot tap drilling tools
