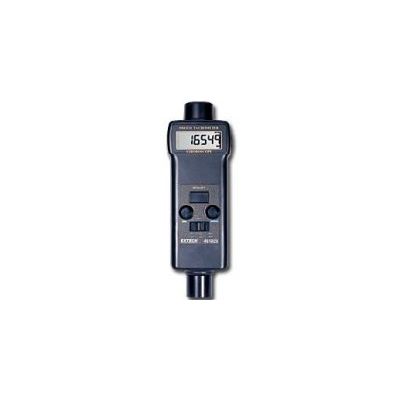

ExtechModel 461825 -Combination Photo Tachometer/Stroboscope

SHARE

Two meters in one - Stroboscope to analyze rotating objects, plus a Non-Contact Tachometer to measure rpm.

Most popular related searches
Features of the 461825 Extech Phototachometer/Stroboscope
  • Unique display where characters reverse direction depending on measurement mode you are in
  • Large 0.4" 5 digit LCD digital display
  • Microprocessor based with quartz crystal oscillator to maintain high accuracy
  • Tachometer memory stores last, max and min readings
  • Performs Tachometer RPM measurement and Stroboscopic speed and motion analysis
  • Stroboscope course and fine flash rate adjustments in three ranges
  • Battery operation brings motion analysis to any location
  • Complete with four 1.5 volt AA batteries, reflective tape and carrying case
  • Optional Certificate of Calibartion traceable to N.I.S.T standards
Specifications of the 461825
  • Range RPM 0.5 to 20,000 5 to 99,999
  • Accuracy ¡À(0.1% +2digits)
  • Surface Speed 0.2 to 6560 ft/min
  • Sampling Time 1sec > 6 RPM 1 Sec ¡Ý 60 RPM
  • Resolution 0.1 RPM (
  • Power 4 x 1.5V AA Batteries
  • Dimensions 8.5 x 2.6 x 1.5" (215 x 65 x 38mm)
  • Weight 10.6oz (300g)
  • Warranty 1 year
