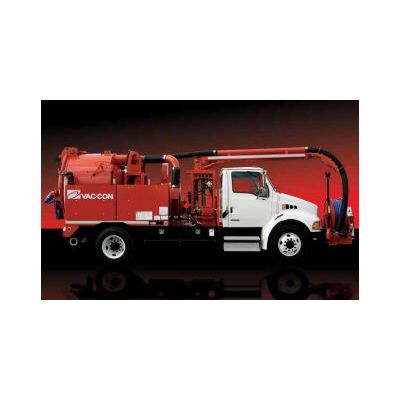

Vac-Con - Model 3.5 Yard V-230 -Combination Sewer Cleaning Truck
FromVac-Con, Inc.
Vac-Con Power and Quality in a Smaller, more Economical Package. Minimum Chassis Requirements: 210 HP Diesel Engine. Manual or Automatic Transmission. 10,000 lb. Capacity Front Axle. 17,500 lb. Capacity Rear Axle. 108” Cab to Axle (CA) Dimension. Clean Frame Rails (back of cab). 50 Gal. Fuel Tank. Debris Tank.
Most popular related searches
combination sewer cleaning vehicle
hose reel
high-pressure hose
water tank construction
water system pressure
positive displacement blower
sewer cleaning vehicle
combination sewer cleaning
hydrostatic drive
water pump
Debris Tank
- Capacity: 3.5 Cubic Yards (2.68 Cubic Meters)
- Material: 3/16” Corten Steel w/ 5 yr Warranty
- Rear Door: Full Opening
- Dump: 50º Angle
- Drain: 5” Butterfly Valve with 10’ Lay Flat Hose
- Shut Off: Stainless Steel Float Balls
Vacuum Compressor
- 2-Stage Centrifugal Compressor w/ 5 yr Warranty
- Rating: 135” Negative Water and 0-8000 CFM
- Filtration: Centrifugal Separator with Clean Out
- Power Source: Hydrostatic Drive / Chassis Engine
Water Tank
- Construction: Cross-Linked Polyethylene Non-Corrosive Tank w/ 10 yr Warranty
- Tank Thickness: 3/8” (9.53 mm)
- Hydrant Fill Hose Diameter: 2-1/2” (63.5 mm)
- Hydrant Fill Hose Length: 25’ (7.62 m)
- Additional Features: Water Level Sight Gauge, Tank Access Inspection Ports
- Capacity: 500 gallons
Water Pump
- Style: Triplex
- Rated For: 40 gpm at 3000 psi (113.5 Ipm / 210 Bar)
- Power Source: Hydrostatic Drive / Chassis Engine

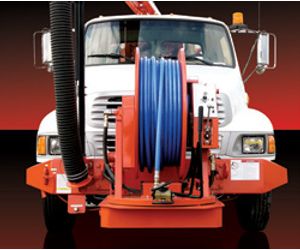

Hose Reel
- Style: 180° Manual Rotation, “Easy Tilt” for Engine Access
- Location: Front Mounted
- Capacity: Up to 600’ x 3/4” (182.9 m x 19 mm) Hose, Up to 1200’ x 1/2” (304.8 m x 12.7 mm) Hose, Up to 800’ x 5/8” Hose
- Controls: Pump On / Off, Vacuum On / Off, Hose Reel In / Out, Hose Reel Speed Control, Engine Throttle, Boom Joystick, Pendant Control
- Gauges: Water System Pressure Gauge, Tachometer
Hand Gun Water System
- 25 ft. (7.62 m) of 1/2” (12.7 mm) High-Pressure Hose
- 20 gpm (75.7 Ipm) at 600 psi (41 Bar)
Boom
- Fully Hydraulic Extendable 5’ with 180º Gear Rotation
- Dual Lift Cylinders
- 20.5’ of 6” Aluminum Pipe & Clamps
Nozzles & Accessories
- Penetrator Nozzle
- Sanitary Nozzle
- Hose Guide with Retaining Rope
- Hydrant Wrench
- Leader Hose
- Nozzle Pipe Extension
Tool Storage
- Tool Box (16” x 13” x 72”)
- Vertical Pipe Storage
Options
- Hydro-Excavation System
- Winter Recirculating System
- Air Purge (Requires Air Brakes)
- Hose Footage Counter
- Arrowboard / Arrowstick
- Revolving / Strobe Lights
- Hydraulic Door Locks
- Debris Tank Flush Out System
- Vacuum Breaker System
- Low Water Alarm w/ Light
- 50’ Retractable Hand Gun Hose Reel
- Positive Displacement Blower (2100 CFM)
- Water Pump Rated for 25 gpm at 4000 psi (94.6 Ipm / 280 Bar) includes 400’ x 5/8” Sewer Hose
- Boom Work Lights
- Pump-Off / 200 gpm
- Debris Tank Interconnect
- Handheld Spotlight
- Inspector Cam
- Fan Flush Out
- Wireless Remote
- Backup Alarm
- 8” dia. lnlet & Pick Up Tubes
