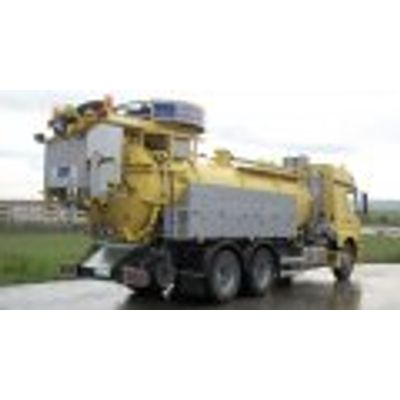

TDI - Model CD Series -Combination Sewer Jetting and Vacuum Truck
The CD Series Combination Sewer Jetting and Vacuum Truck by TDI Engineering and Machinery Ltd. Co. is a robust vehicle designed for efficient removal of various types of debris such as sand, stones, bottles, cans, grease, sludge, and other particulates from sanitary sewer and drain lines. This truck utilizes the power of both high-pressure water and vacuum technologies. Featuring a positive displacement vacuum pump and a high-pressure water pump, it is ideal for intensive sewer cleaning operations. The self-contained water supply ensures a reliable source for the high-pressure pump, while the cylindrical debris tank collects all removed materials. Capable of simultaneous high-pressure flushing and debris removal, this truck can be adapted to different truck chassis configurations (two, three, or four axles) with varying tank volumes to suit specific requirements. Optional customizations are available, providing tailored solutions for diverse disposal operations.
Combined sewer jetting and vacuum truck is used for removing sand, stones, bottles, cans, grease, sludge and other debris from sanitary sewer and/or drain lines by the flushing action of high pressure water. The unit includes a positive displacement vacuum pump and a high pressure water pump. Combination jet/vac machine is equipped with self-contained water supply as the water source for the high-pressure pump and a cylindrical debris tank for collecting all materials coming from the sewer system . Combination unit is able to perform simultaneous high pressure flushing of sewer pipe and removal of liquids and solids from the sewer manhole.
Combined sewer jetting and suction superstructure can be produced on different kinds of truck chassis of two, three, or four axles with the following tank volumes:
- Approx. 9.000 lt. with load capacity of 18t trucks
- Approx. 14.500 lt. with load capacity of 26t trucks
- Approx. 20.000 lt. with load capacity of 32t trucks
- Hydrodynamic sewer and pipeline cleaning of diameters from 150 to 1200 mm.
- Hydrodynamic drain line cleaning
- High pressure surface cleaning
- High pressure industrial cleaning
- Pond and catch basin cleaning
- Sludge pool cleaning
- Oil and grease separation pools cleaning
- Produced of St37 ( EN10025 – S235JR ) or St52 ( EN10025 – S355 J2G3)
- Cylindrical multi-chamber tank ( sludge and fresh water compartments)
- Positive displacement blower or liquid ring vacuum pump ( 900 – 6000 m³/h)
- High pressure plunger pump ( 150 – 400 lt/m @ 100 – 250 bar)
- Cardan-shaft or v-belt driven plunger and vacuum pumps
- 4 exit split shaft PTO
- Vacuum capacity of at least %90 ( -700 mbar)
- Hydraulically driven suction hose boom
- Hydraulically driven high pressure hose reel
- Hydraulic tank lifting
- Forced emptying via vacuum pump ( in pressure mode)
- Manual or hydraulic rear door locking
- Hydraulically opening, full size rear door
- Safety and filtering systems for vacuum and jetting systems
