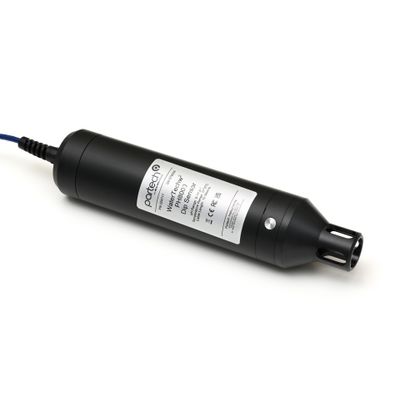

Partech - Model WaterTech pH & ORP -Combined Sensor
FromIn-Situ Process
The WaterTech pH & ORP Sensors has been designed to provide highly reliable pH, Redox and Temperature measurements. The sensors use a flat surfaced electrode which includes an extended reference path, these features combine to provide extremely robust pH & Redox measurements, suitable for use in surface water, wastewater and drinking water applications.
The electrode uses field-proven flat surface, self-cleaning technology. The reference system is enhanced by the Extended Path Reference (ERP) design which provides a complex path to protect the reference in the presence of interacting ions such as proteins, silver and sulphides.Most popular related searches
water monitoring system
pH/ORP sensor
pH/redox
pH/redox/temperature monitoring
clean technology
surface water
temperature monitoring
ORP sensor
water monitoring
drinking water
Physical
- Dimensions (hxwxd) : 60mm (2.3") diameter x 270mm (10.6") long
- Weight : 0.95 kg (2lbs) (inc 10m/32ft of cable)
- Protection Class : IP68
- Enclosure Material : Black PVC with Nylon Cable Gland
- Cable Entry : Intergral Cable Gland
- Cable Length : 10 metres standard
Interface to Monitor :
- Power Supply : 12 VDC from Monitor
- Sensor Output : ModTech, RS485
Environmental Data :
- Operating/Storage Temperature : 0 to 70ºC (32 to 158°F)
Maintenance :
- Service : Electrode Replacement
Calibration and cleaning are required at a frequency determined by application
Physical
- Dimensions (hxwxd) : 235 x 310 x 155 mm
- Weight : 0.35 kg
- Protection Class : IP68
- Enclosure Material : Black Acetal Co-Polmer with Stainless Steel Mounting PLate
- Cable Entry : Integral Cable Gland
- Cable Length : 10 metres standard, 100 metres maximum
Interface to Monitor :
- Power Supply : 12 VDC from Monitor
- Sensor Output : ModTech, RS485
Environmental Data :
- Operating/Storage Temperature : 0 to 70ºC
- Location : Indoor/Outdoor
Maintenance :
- Service : Electrode Replacement
- Periodic cleaning is required at a frequency determined by the application. Our self cleaning shaft option is highly recommended, this eliminates manual cleaning between calibrations.
- Calibration : The sensor is inherently stable, calibration should be carried out to suit the application. Our recommendation is every 6 months.
Measurement Characteristics
- Principal of Operation : Combined Electrode (pH/reference) - Ag/AgCl)
- Double Junction ERP Reference
- Accuracy : +/- 0.05 pH
- Resolution : 0.01 pH
- Display Resolution : see 7300 Monitor
- Range : 0 - 14 pH
Temperature :
- Principle : NTC
- Range : 0 - 50°C
- Accuracy : +/- 0.5°C
- Resolution : 0.01°C
