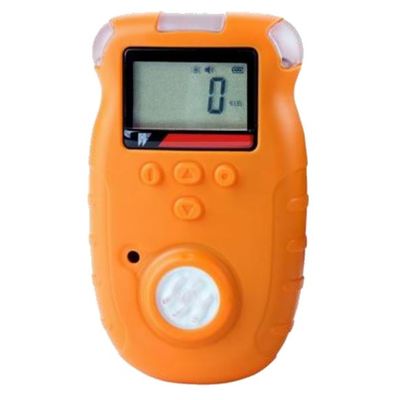

IMR - Model IX176 -Combustible and Toxic Portable Single Gas Detector

SHARE

The IMR IX176 portable single gas detector can make continuous detection to combustible and toxic gases. It is suitable for combustible and toxic gas leakage detection in underground pipe or mines. It keeps the workers safe and helps prevent the facilities from being destroyed.

Most popular related searches
portable single gas detector
single gas detector
gas detection system
portable gas detection system
gas leak detection system
gas sampling method
toxic gas
gas sensor
portable gas
gas sampling

It has a high-quality sensor, and uses natural diffusion as the method for detection. It has high sensitivity and reproducibility. It also uses an embedded MCU controller and is easy to operate. The shell has special high strength anti-slip rubber it is water-proof, explosion-proof and dust-proof. It has alarms that are visual, audible, and with vibration.

  • Memory for up to 2,000 readings
  • Data transfer software and USB cable included
  • Backlit LED display

  • Gas sampling method: natural diffusion
  • Gas sensor type: catalytic (for combustible gas) and electrochemical (for H2S, CO, O2, NH3, CO2,SO2)
  • Accuracy: ±5%FS
  • Response time: T90 < 30s
  • Indication: LCD displays real-time and system status
  • LED, audio and vibration alert for gas leakage, fault and low voltage
  • Working environment: -20 to 50°C, 95% RH (no dew)
  • Power source: 3.6V DC Rechargeable Li-on battery 1,800Ah
  • Charging time: 4~6 hours
  • Working time: ≥10h continuously (without alarming)
  • Gas sensor life: 2 years
  • Explosion-proof grade: Exia II CT3
  • Protection grade: IP65
  • Weight: 200g (with battery)
  • Dimensions: 104 x 60.8 x 30.5mm
  • Communication: RS232/USB
  • Internal Memory – 2,000 records
  • Data transfer software included
  • USB cable included
  • Charger 110-230V 50/60Hz included
  • Clip for belt included
  • Calibration cover included

Optional

  • Telescoping Gas Probe
  • Sampling Pump
