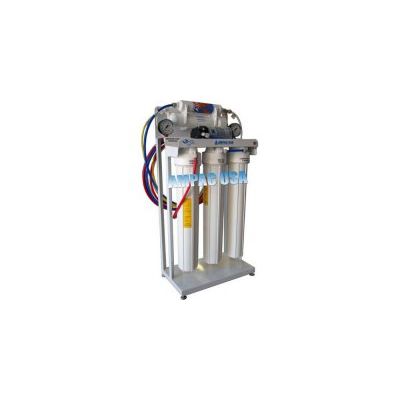

Ampac USA - Model AP100 GPD -Commercial Reverse Osmosis System
This Advanced Reverse Osmosis Water Filter System is a compact RO System and comes with triple 20” pre-filters (Sediment, Activated Carbon and Carbon Block) to provide better pre-filtration which prevents the Reverse Osmosis Membrane from fouling. This R/O system also include an activated coconut shell post-filter to improve taste, odor and clarity of the permeate water produced. This Advanced Reverse Osmosis system has been designed to accommodate tougher water conditions, featuring high quality components, free standing. space saving design to allow for many optional features and upgrades to suite most Water Purification Applications.
The Ampac USA Tower Series design is optimized for Free Standing Application The five models; 100 GPD, 200 GPD, 300 GPD and 400 GPD all occupy the same very compact foot print. This allows flexibility in accommodating the limited space available in most commercial utility equipment locations. Quick connect tube fittings on all system ports further simplifies installation and service. Most important, all Ampac USA Tower Series models incorporate the most reliable combination of proven reverse osmosis hydraulic design and state of the art Thin Film Membrane Elements to provide the long term performance expected by commercial users. The welded Aluminum Frame with the Aluminum Diamond Plate allows easy access to all major system components.
- Capacity 100 GPD (Gallons per Day) (387 Liters per day)
- 2½" x 10" high Flow TFC Membranes
- 98% Average Rejection
- 20" 5 Micron Sediment Pre-Filter
- 20" KDF-GAC-Poly Phosphate Pre-Filter
- 20" CTO+2 Carbon Block Pre-Filter
- Aluminum Powder Coated Bracket
- Quick Disconnect John Guest Fittings
- Aquatec Booster Pump 110V or 220V, 50/60Hz
- Stand
- Capacity: Gallons Per Day : 100 GPD
- Capacity: Liters Per Day : 378 LPD
- Salt Rejection % : 99.2%
- Recovery : 50%
- Max Feed TDS : 2000 PPM
- Voltage : 110V or 220V 50/60Hz or as per Client Requirement.
- Filter Stages
- Number of Filter Stages : 4
- Number of Membrane Elements : 1
- Filter Kit Item No. : APC-20K
- Membrane Item No. : TFC100
