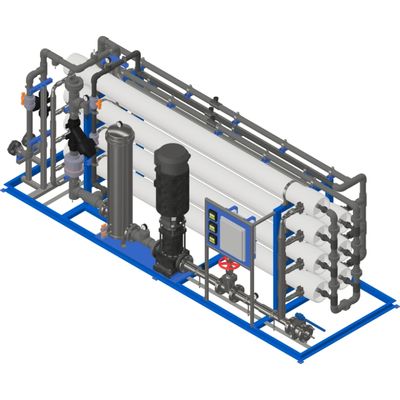

Excalibur Sureflo™ - Model SFIN Series -Commercial Reverse Osmosis Systems

All units are mounted on a carbon steel blue painted frame with the following features:

• Series 200 microprocessor-controlled high pressure booster pump
• Conductivity sensor probe
• Inlet solenoid valve
• 5-micron pre-filtration
• Stainless steel membrane housings
• 8”x40” XLE low energy TFC membranes
• Low pressure switch
• Adjustable flow meters
• Oil filled pressure gauges pre-filter, post filter, pump pressure, and membrane pressure.
• Optional pH probe, ORP probe, autoflush membrane cleaning, permeate divert, and clean-in place (CIP) membrane cleaning connections.

• Universal AC Power 80 – 265 Vac 50/60 HZ
• 4 Lines x 40 Character backlit liquid crystal display
• 18 Key keypad with integral alarm light
• Programmable time delays and set points
• Real time clock with battery backup
• Non- volatile set point memory
• Audible alarm with timed alarm silence
• US or Metric readings
• Nema 4X hinged enclosure, 16”x14”x8”, larger panel required
• Plug in terminal strips
• Led input/output indicators
• Pre-programmed R.O. functions

• Feedwater valve relay
• Reverse Osmosis and Auxiliary pump control relays
• Permeate and feed TDS/Conductivity membrane flush valve relay
• Permeate divert valve relay temperature
• Operating hours
• Low feed pressure switch
• High pump pressure switch
• Pretreatment lockout
• Flow meter interface for permeate and concentrate
• Reverse Osmosis tank switches
• Reverse Osmosis tank low switch
• Remote alarm output
• RS232 serial port output
