Kingspan Klargester BioDisc - Commercial Sewage Treatment Plant

• Low odour – tested in accordance with EN13725 (report available on request)
• Low noise – utilising a rotating disc as opposed to noisy blowers
• Affordable running costs over the expected 20 year lifetime of the product
• Tailored technical support from our expert teams
• Free site visit to help select the model to meet your needs
• SmartServ Pro remote monitoring option available (as an optional extra)
• Single piece tank delivered directly on site

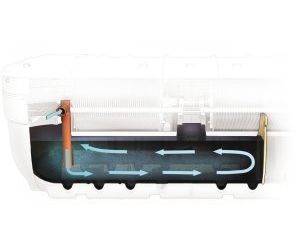

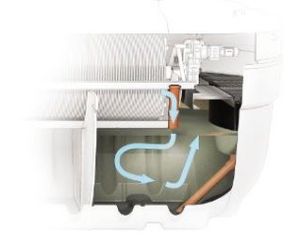

• Flow Management Continuous treatment even with over or under load
• Fully removable covers for simple maintenance
• Variable inlet invert/outlet options
• Fully managed package which includes; design, installation, smart commissioning, service and monitoring.

• Meets the requirements of EN 12255 (BF-BN)

• Pubs, Hotels & Restaurants
• Schools
• Nursing / Residential homes
• Housing developments
• Holiday and Caravan/Camping Sites
• Residential Parks (Mobile or static caravan sites)
• Factories, Offices, Industrial Estates & Commercial Business Parks
• Construction Sites - Welfare Facilities
• Distribution Centres
• Leisure Parks/Attractions
• Sports/Health Centres
• Energy from Waste Sites

*Commercial kitchens and catering require the use of grease traps before the treatment system.

This product is designed to achieve an effluent quality of 20mg/l BOD5, 30mg/l Suspended Solids and 20mg/l Ammonia. The Kingspan Klargester BioDisc® can also be configured to produce better standards of effluent quality with Ammonia levels as low as 5mg/l being achievable. For expert advice for design, support and further information call 01296 633033.

Applications, where commercial catering takes place, will generate significant volumes of grease which should not be allowed to enter any treatment system.

Kingspan manufacture a wide range of Klargester Grease Traps and specialist advice should be sought in these types of applications.

The treatment of sewage from applications other than domestic housing can often demand special precautions, therefore specialist advice should be sought from Kingspan Klargester.

• Low profile lockable covers
• Fully removable covers to ease maintenance.
• Full platform access to motor and bearings
• Secure lockable control panel
• Integrated loss of rotation alarm (optional on BF-BG, standard on BH-BM)
• Local and remote alarm options available with SmartServ Pro


The plant is supplied with either a single-phase or a three-phase direct drive motor and come complete with a control panel and feature:

• Inversion device included within the panel*
• Single-phase power supply to the panel converted within the panel to three-phase prior to connection to the drive motor

*  Kingspan Klargester BioDisc® BH-BN only.

The Kingspan Klargester BioDisc® has a reputation of reliability and low operational costs:

• Designed to run from either a single-phase or 3 phase power source
• Require 120 to 370 watt motors

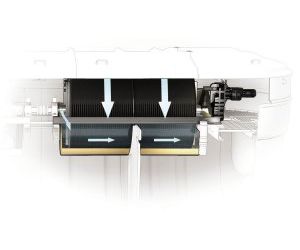

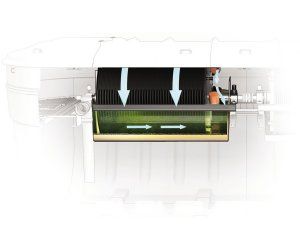

The well established Kingspan Klargester rotor design which;

• Is compact and structurally sound
• Is designed and built for long life without the need for rotor maintenance often associated with sectional bolted rotor assemblies

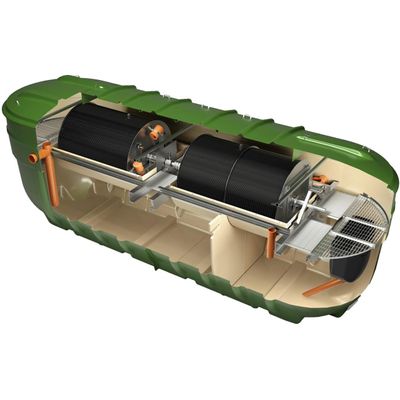

All Kingspan Klargester BioDisc® in this range utilise the same casing, providing:

• Lightweight, yet robust and structurally strong GRP construction for easy on-site handling
• Steel cradle integrated into the casing provides a stable platform for mechanical components
• Factory pre-engineered to exacting Kingspan standards, ensuring consistently high quality and eliminating on-site assembly
• Full-length ports providing quick and easy access for desludging
• 600mm invert depth, with only 150mm head loss through the plant
• Variable desludging/emptying cycles
