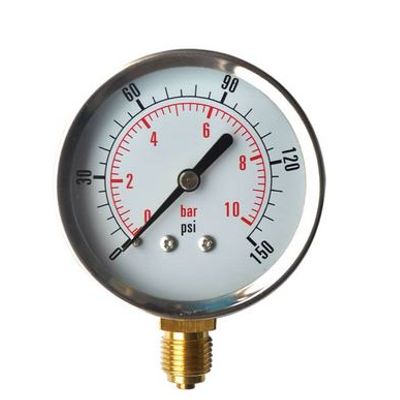

Ma Anshan Exact - Model 112AB -Common Pressure Gauge
Common Pressure Gauge offers a wide variety of economical gauges for applications where ambient or process corrosion are not of concern. they are suitable for non-vibrating applications.
Most popular related searches
- Standard Black Steel Case
- Copper Alloy Wetted Parts Cost Effective
- Design ASME B40.100 Design
- Paymet terms: T/T, L/C,DP
- Port: shang hai or ning bo
- Model: 112 AB Common Pressure Gauge With Stainless Steel Bezel
- Applications: Usd for pneumatic systems,compressors,compressed air system;Suitable for fluid medium which does not clog connection port or corrode copper alloy
- Size: (mm): Ø40, 50, 63, 75, 100
- Scale ranges: -1+400bar ( 30”Hg/6000Psi )
- Accuracy class: 1.6% for Ø(40-75), 1.6% or 1% for Ø(100)
- Connection: Brass,1/8" Ø(40) 1/4" Ø(50, 100) 1/2" Ø(100)
- Thread: NPT,BSP,M10X1,M14X1.5,M20X1.5 and so on
- Wetted parts: Copper alloy
- Case material: Stainless steel case and stainless steel bezel
- Window: Glass / Plastic
- IP class: IP 43
- Pointer/Dial: Aluminum finished
- Operating Temperature: -40 F to 140 F (- 40 C to 60 C)
- Media Temperature: 60 C Maximum
