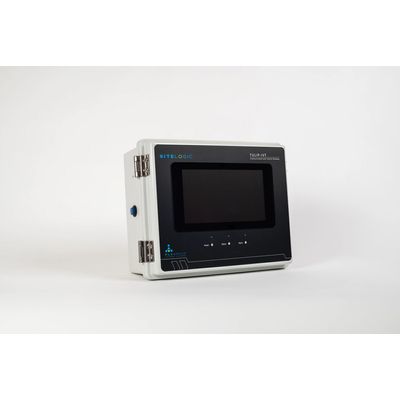

PLC - Model TULIP-IVT -Communication Controller and Gateway
FromPLC Group Inc.
Multi-application gateway, aggregator, web server, and protocol converter, Ethernet, wireless and serial communication options, Multiple sensor inputs, Multi protocol support, Modbus RTU/TCP, SNMP, CAN, BACnet, 7 inch touchscreen, Storage from 16GB and up.
Most popular related searches
remote data acquisition
sensor data acquisition
remote monitoring
HVAC monitoring
sensor data
air flow sensor
data center monitoring system
HVAC
light monitor
humidity sensor
- Data Centers & Telecom Realtime Monitoring Solution
- Energy Monitoring Solution
- Facilities Management & Planning Solution
- Free Air-Cooling. Heat Pumps & HVAC Monitoring & Control
- Generator Monitoring & Control Solution
- Access Control & Audio Solutions
- Managed Services
- Tower Light & Monitoring Control Solution
- Professional Services
- Ongoing performance, monitoring and management
- Remote Data Collection; No site visits
- Load and efficiency present and historical information
- Telemetry supports intelligent, informed actions
- Power Infrastructure & Utilization Report, comprehensive report with trending and historic power information includes for ‘timely’ decisions for load balance
- Storage 2GB industrial grade
- Network 1x Ethernet RJ45 10/100M (Optional 4 Ports), WiFi
- Power AC Input: 100-240 (15W Max); DC Input: 18 to 58VDC
- USB 3 x USB serial ports for Modbus / Serial connections
- Sensor Ports (Optional) 3 x RJ45 sensor ports, temp, humidity, airflow sensors
- Alarm Ports 2 x RJ45 for 5 input alarms
- Peripherals I/O for UART, I2C, SPI, ADC, PWM, CAN, I2S, SPDIF
- LEDs Power, Status, Alarm
- Alarm Reset SPST Push switch
- Buzzer Passive Piezoelectric Buzzer; sound level up to 87db
- Modbus TCP/RTU communication with 3rd party controllers i.e. Generators, Energy Meters, HVAC, ATS, DC Plant etc.
- IPv4 and IPv6 capable
- SNMP version 1, 2 device management
- Alarms configuration & reporting
- Analog/Digital sensors data collection
- Data aggregation over wired/wireless WiFi network
- Performance parameters summary on graph and over SNMP.
- Remote bulk data collection over http
- GUI interface for configuration
- Remote software upgrade
- Auto configuration backup over FTP
- Local data storage up to 3 years
- Real time & Historical Alarms logging
- CSV log file export for Alarms & parameters
- Real time active graphs for user defined intervals
- System clock with configurable NTP server
- Multi level user access
- User and Admin authorization levels for read only and read write access
