High Tide Technologies - Model HTT-2100 -Communication Device

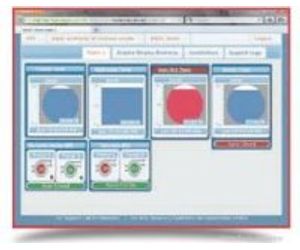

Thanks to its 8 digital inputs, 4 analog inputs and 8 digital outputs the HTT-2100 can turn on/off remote pump stations based upon remote tank readings or by a simple input by an operator using the TelemetryVIEW web interface. Automatic or manual is always an option for the operator and can be changed at any time.

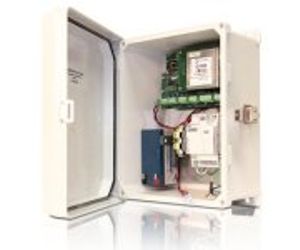

The HTT-2100 communication device receives input data from analog or digital sensors and transmits that data through the IRIDIUM network or available GSM/CDMA networks directly to the High Tide Technologies server. The transmitted information is checked for alarms and stored in a historical database.
Attached valve and pump assets can be controlled based on incoming data or directly by the operator. Historical data can be viewed the Internet using any standard browser.
- Battery backed up with power fail alarms
- 4 Analog level inputs (4-20ma or 0-5v)
- 24v loop power for 2-wire sensors
- 4 Relay outputs for pump control
- Simple installation and service
- 8 Digital inputs (4 counters)
- A/C or Solar powered
- Optional rain gauge
- Water Distribution
- Pump Stations
- Control Valves
