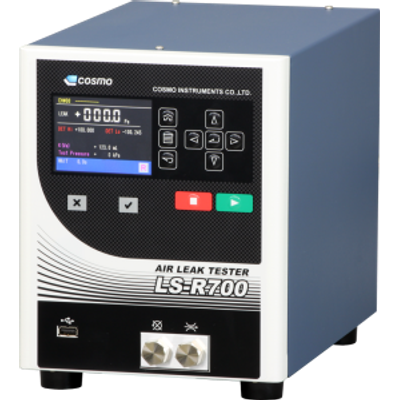

Cosmo - Model LS-R700 -Compact Air Leak Tester
Compact air leak tester with a focus on user-friendliness, equipped with a range of functions, now being sold as the high-performance standard type! The LS-R700 is a next-generation air leak tester from Cosmo Instruments, combining years of expertise with the latest technology. It features a color LED display, intuitive icon-based operation, and instant language switching (Japanese/English/Chinese) for global usability. With three measurement screen options, users can choose between a simplified or detailed display. Designed for versatility, the LS-R700 meets diverse industrial needs efficiently.
Main menus are classified by icon
You can understand in an instant the display of the program lock state and [M] manual/[R] remote.
The language can be easily switched from here.
Can switch between 3 kinds of measurement screen
The above measurement screen is a detail screen.
Each set value and necessary information can be viewed.
The measured leak volume is simply displayed with the standard screen, and a waveform display screen is also available.
The display method can be switched according to the situation.
Menu screen for configuring settings related to leak test.
Choose the required items, configure and copy, and the USB port can be used to download the settings value file.
- The blue bar beneath the screen is the guidance bar.
- The help text for the selected part is displayed in the guidance bar.
- Therefore it is possible to operate smoothly even without a user manual.
Vertical compact body with dimensions W195 x H250.2 x D304.7.
Despite its small size, all functions for running leak tests such as the intelligent pneumatic circuit are included.
Phoenix Contact product was adopted for the controller I/O connector of the input/output interface.
The connector is very reliable, and the wiring work can be done with a flat-head screwdriver, so that the work efficiency increases.
- Supports Japanese, English, and Chinese.
- Overseas expansion is simple.
- Measurement data is automatically saved to USB memory.
- Other settings information can also be backed up with USB memory.
