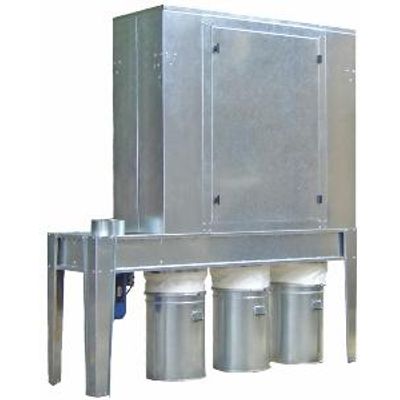

Wood Waste Control - Model FD -Compact and Efficient Fine Dust Extraction Units for Woodworking
The FD range of collector units from Wood Waste Control is ideal for a wide range of fine dust applications with an extraction requirement of between 1,000 to 8,000 m3/hr. Each extraction unit is sold fully assembled and comes in a self-contained compact footprint, ideal to be installed inside or outside without losing valuable floor space. All FD extraction units come with a shaker unit that automatically cleans the filter bags, reducing the need for expensive compressed air systems and prolonging the lifespan & efficiency of the filters. New to 2016 is the new TH range adding extra filter area. Suitable for all wood products such as MDF, MFC, Hard Wood, softwood and more..
Typical Applications:
- Wood working industries
- Grinding, buffing & sanding applications
- Plastic & Composite Manufacturers
- Food & Pharmaceutical powders
Features:
- Compact Design, can be installed as a central system or deployed at point of dust generation.
- Versatility, Different configurations available to suit a variety of applications.
- Easy to assemble galvanised steel construction.
- Automatic filter bag cleaning as standard.
- ATEX explosion relief panel
- Can be located inside or outside if required
The FD Extraction systems are certified according to the latest ATEX European Directive for explosive dust.
- Exceptional performance on fine dust and chippings.
- Robust Impellor for contiued use.
- Huge filter area wih space saving features
- Can be easily configured to suit your needs
- Automatic filter bag cleaning as standard.
